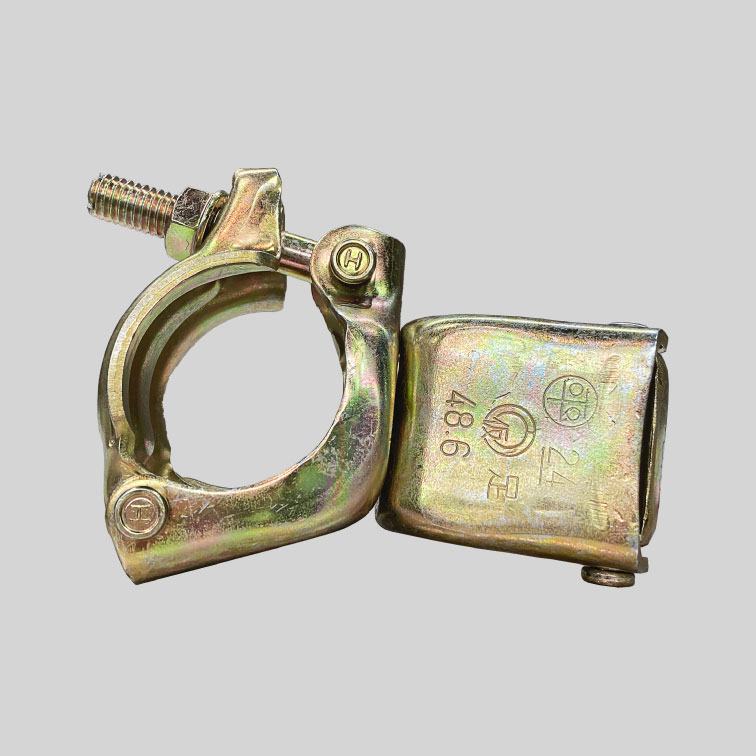

48.6 Coupler -Right angle- :HCR-Right angle –

This coupler is a trademark product of Heiwa Giken that sells one million units a month.

Type for 48.6
Individual weight 0.7kg
Quantity per case 30

仮設工業会認定品

仮設工業会認定品

Certifications PDF

足場用48.6クランプ直交

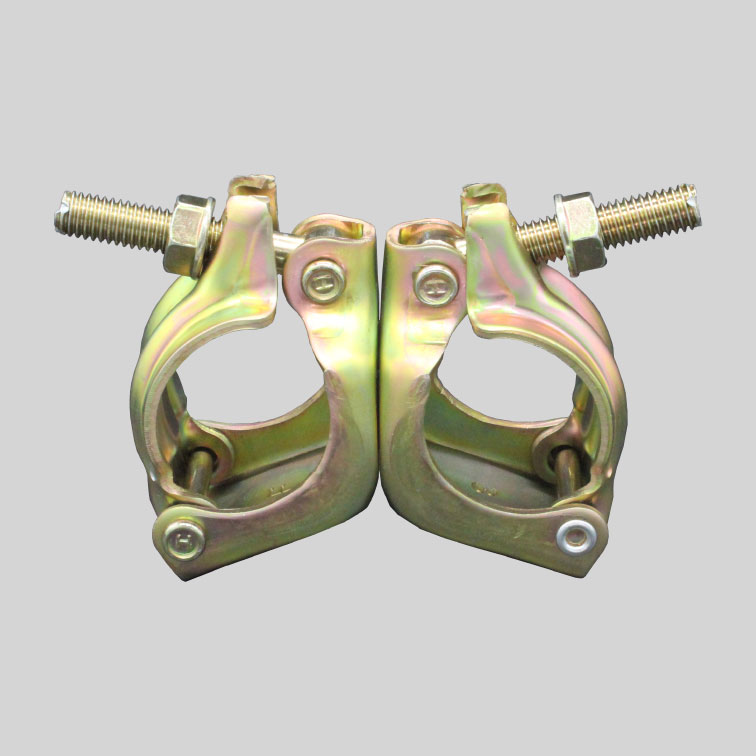

48.6 Coupler -Swivel- :HCR-Swivel

This coupler is a trademark product of Heiwa Giken that sells one million units a month.

Type for 48.6
Individual weight 0.7kg
Quantity per case 30

High corrosion resistant plating is also available.

仮設工業会認定品

仮設工業会認定品

Certifications PDF

足場用48.6クランプ自在

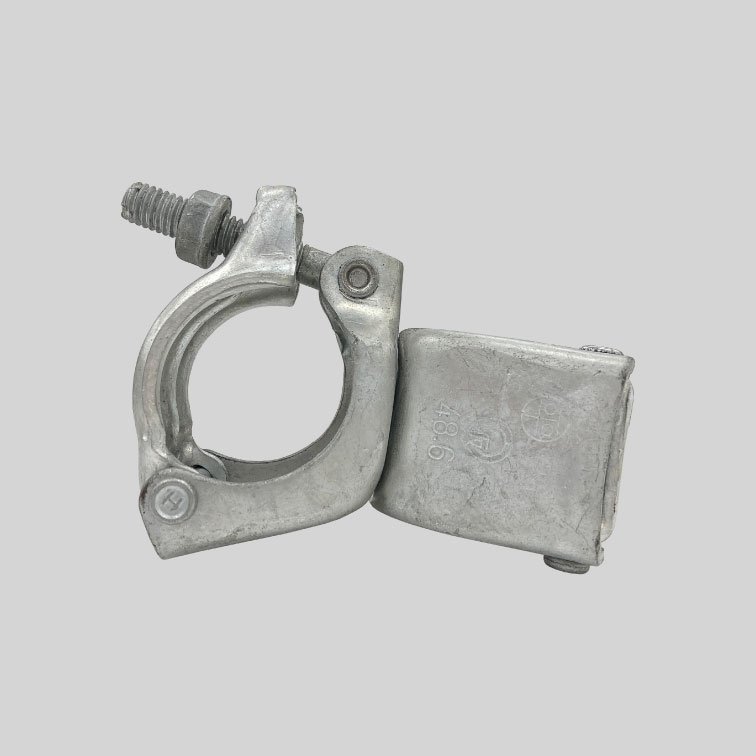

48.6 Coupler -Right angle- :HCR-HD-Right angle

Type for 48.6
Individual weight 0.7kg
Quantity per case 30

仮設工業会認定品

仮設工業会認定品

Certifications PDF

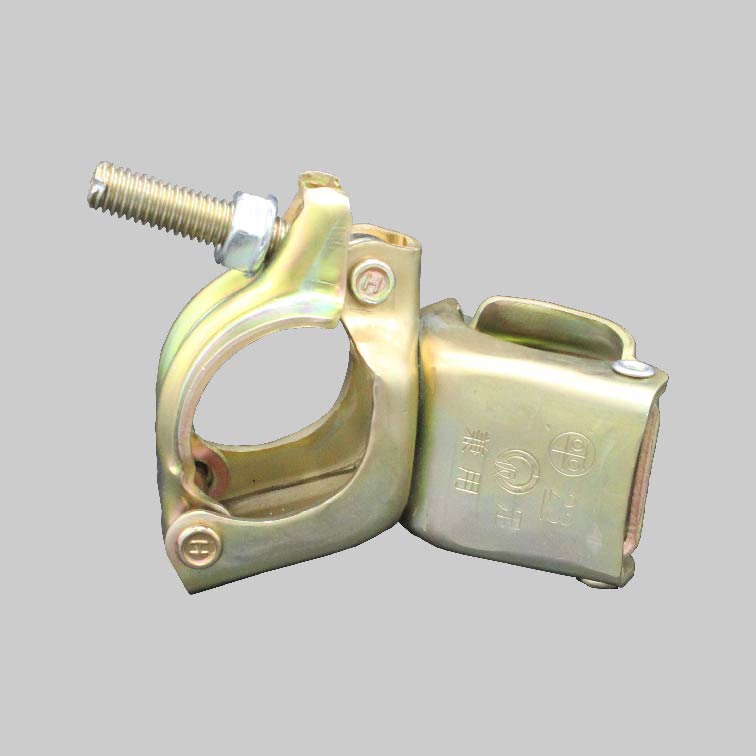

Coupler (Universal type) -Right angle- :HKCR-Right angle

Type for 48.6 and 42.7
Individual weight 0.7kg
Quantity per case 30

This product has been approved by SETSCO SERVICES PTE LTD in Singapore. << Download Certifications PDF >>

仮設工業会認定品

仮設工業会認定品

Certifications PDF

足場用兼用クランプ直交

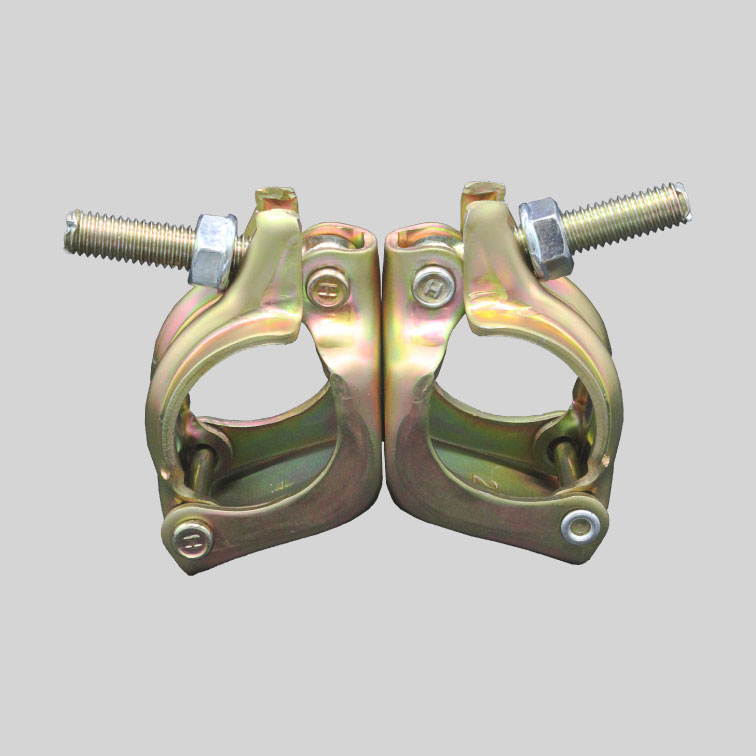

Coupler (Universal type) -Swivel- :HKCR-Swivel

Type for 48.6 and 42.7
Individual weight 0.7kg
Quantity per case 30

This product has been approved by SETSCO SERVICES PTE LTD in Singapore. << Download Certifications PDF >>

仮設工業会認定品

仮設工業会認定品

Certifications PDF

足場用兼用クランプ 自在

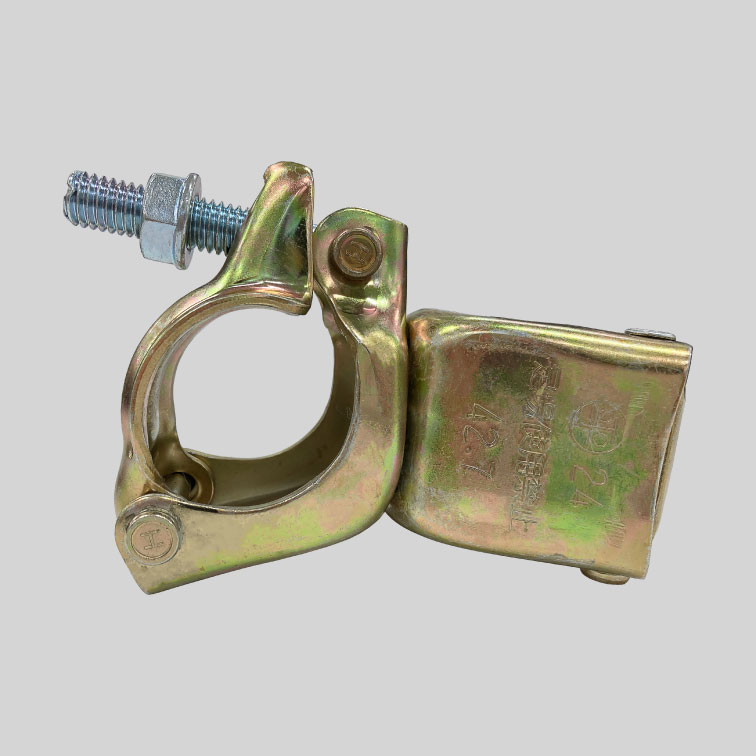

42.7 Coupler -Right angle-

This product is mainly used in agricultural applications.

Type for 42.7
Individual weigh 0.67kg
Quantity per case 30

仮設工業会認定品

仮設工業会認定品

42.7クランプ直交足場用

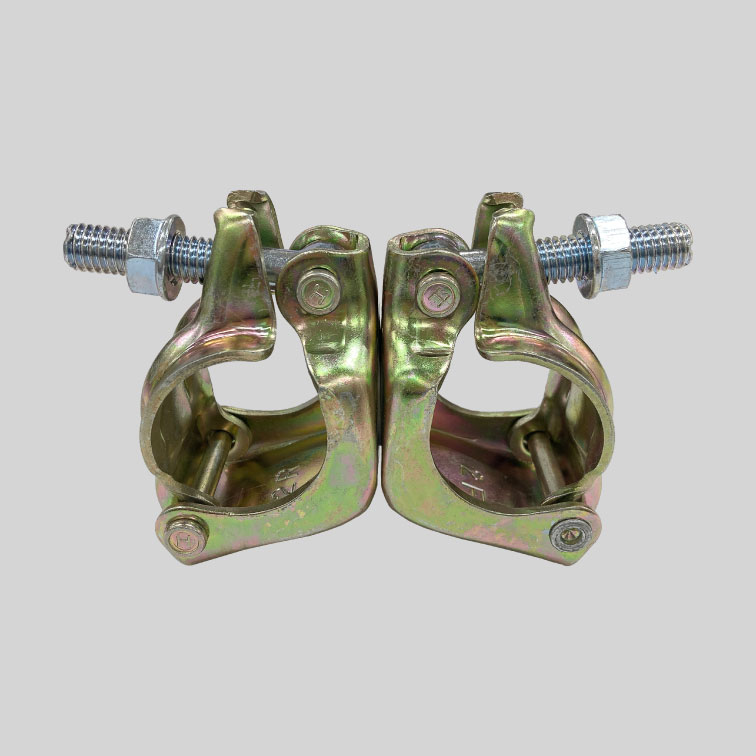

42.7 Coupler -Swivel-

This product is called an agricultural clamp.
As its name suggests, it is often used in agricultural applications (e.g., espalier trellis).

Type for 42.7
Individual weight 0.67kg
Quantity per case 30

仮設工業会認定品

仮設工業会認定品

42.7クランプ自在足場用

Anti-Falling coupler (Universal type) :HKCR

It is not need to reset the nut owing to the curled top of l-bold.
Reduce the maintenance cost.
Easy to assembly with an electric power tool.

Type for 48.6 and 42.7
Individual weight 0.7kg
Quantity per case 30

仮設工業会認定品

仮設工業会認定品

Certifications PDF

ナット抜止め付き兼用クランプ

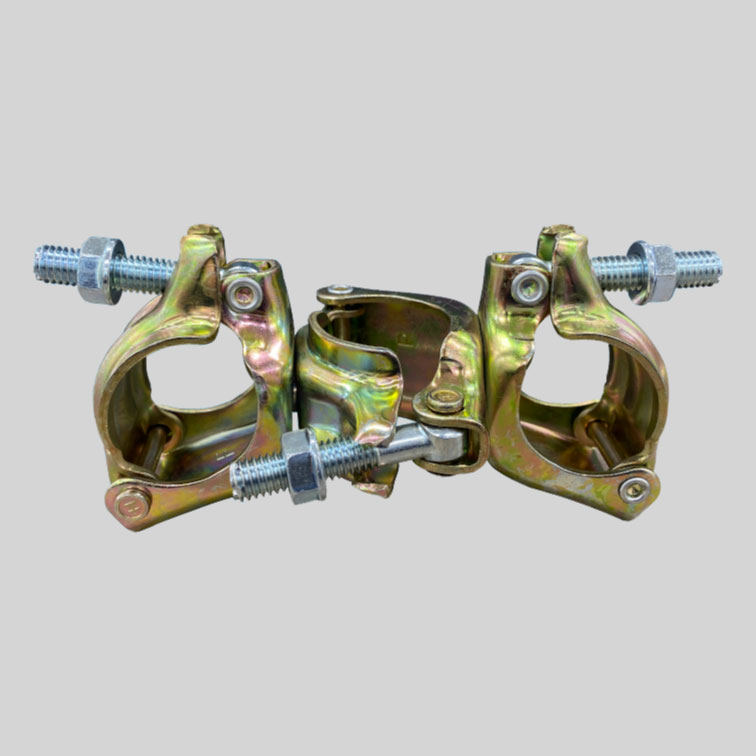

Triple Coupler -Right angle-

Type for 48.6×48.6×48.6
Individual weight 1.04kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

仮設三連クランプ直交

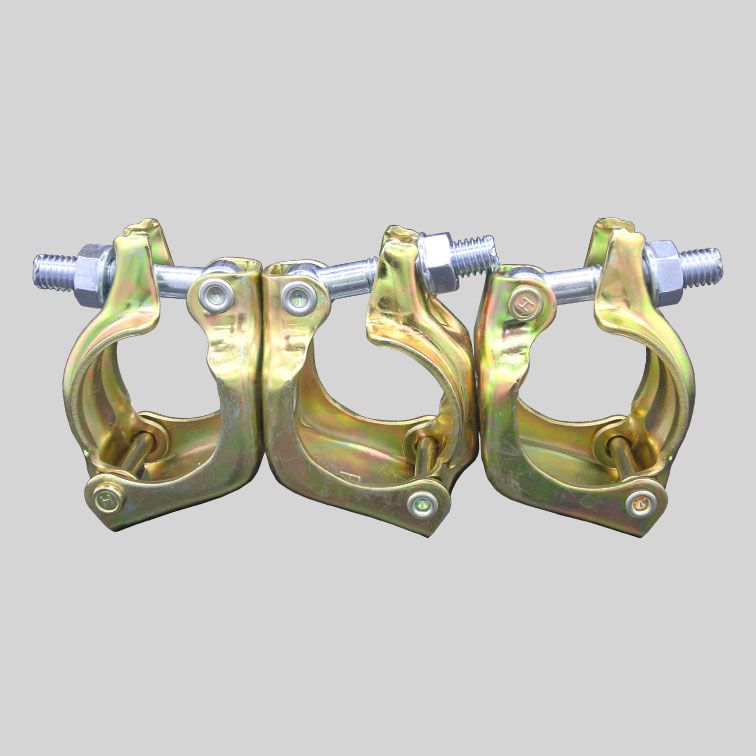

Triple Coupler -Swivel-

Type for 48.6×48.6×48.6
Individual weight 1.04kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

仮設三連クランプ自在

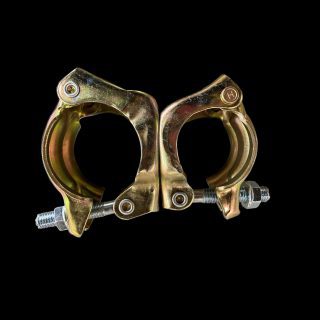

60.5×48.6 Coupler -Swivel/Right angle-

Type for 60.5×48.6
Quantity per case 25

仮設工業会認定品

仮設工業会認定品

仮設60.5ｘ48.6クランプ直交/自在

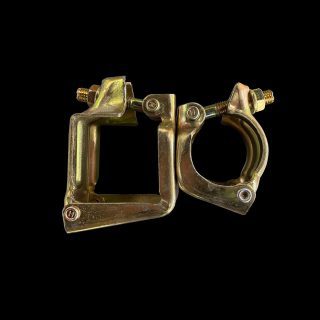

Square60 ｘ Φ48.6 Coupler (Universal type) Swivel/Right angle

Type Square pipe60 ｘ Φ48.6
Universal type is for 48.6 and 42.7
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

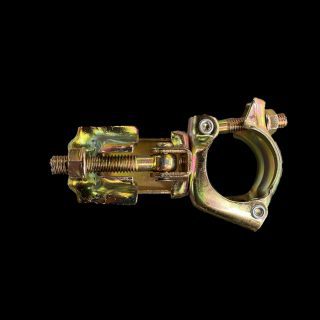

Square50 × Φ48.6 Coupler (Universal type) – Swivel/Right angle –

Type Square pipe50×Φ48.6
Universal type is for 48.6 and 42.7
Quantity per case 25

仮設工業会認定品

仮設工業会認定品

50角ｘ48.6（兼用）クランプ直交/自在

仮設機材50角ｘ48.6（兼用）クランプ直交/自在

Square coupler 60×60 – Swivel/Right angle –

Type for Square pipe 60
Quantity per case Right angle:15
Swivel:20

仮設工業会認定品

仮設工業会認定品

60角ｘ60角　直交/自在

Square coupler 50×50 – Swivel/Right angle –

Type for Square pipe 50
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

50角ｘ50角　直交/自在

50角ｘ50角　直交/自在　仮設機材

Light Coupler -Swivel/Right angle- :HCR-26-Swivel/Right angle

Be made of high-strength steel to certify safety and endurance strength.
Shorter operating hours and labor cost due to light weight.
Qualified with Incorporated of scaffolding industy(Japan)

Type for 48.6
Individual weight 0.6
Quantity per case 30

Weight per case (30pcs)

Usual Coupler 21.0kg
Light Coupler 18kg

仮設工業会認定品

仮設工業会認定品

Certifications PDF

ライトクランプ　直交/自在

ライトクランプ　直交/自在　仮設機材

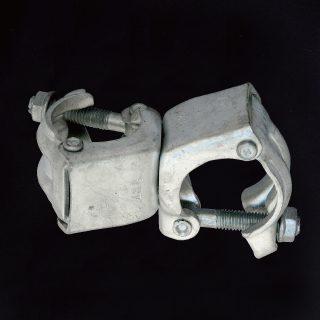

Dimer clamp – Swivel/Right angle –

This a clamp that uses SuperDyma (a pre-plated steel sheet) developed by Nippon Steel & Sumitomo Metal Corporation. Its corrosion resistance, approximately 15 times that of hot-dip galvanization, surely increases the service life of clamps. It is highly rated as a clamp for solar panel bases.

Individual weight 0.7kg
Quantity per case 30

The bolts and rivets are hot-dip galvanized.

仮設工業会認定品

兼用ダイマクランプ　直交/自在

Flange nuts for coupler (width of 7/16)

We provide flange nuts with a width of 7 and 16 inches for clamps.

Note: The sizes are in inches, which are not compatible with sizes in millimeters (M screws).

仮設工業会認定品

クランプ用フランジナット（ｗ7/16）

Hold clamp -Right angle-

This clamp is equipped with a fixing washer at the tip of the tightening bolt, providing stability.

Type for 48.6 and 42.7
Clamp margin 6mm~30mm
Weight 1.02kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

Certifications PDF

ホールドクランプ　直交

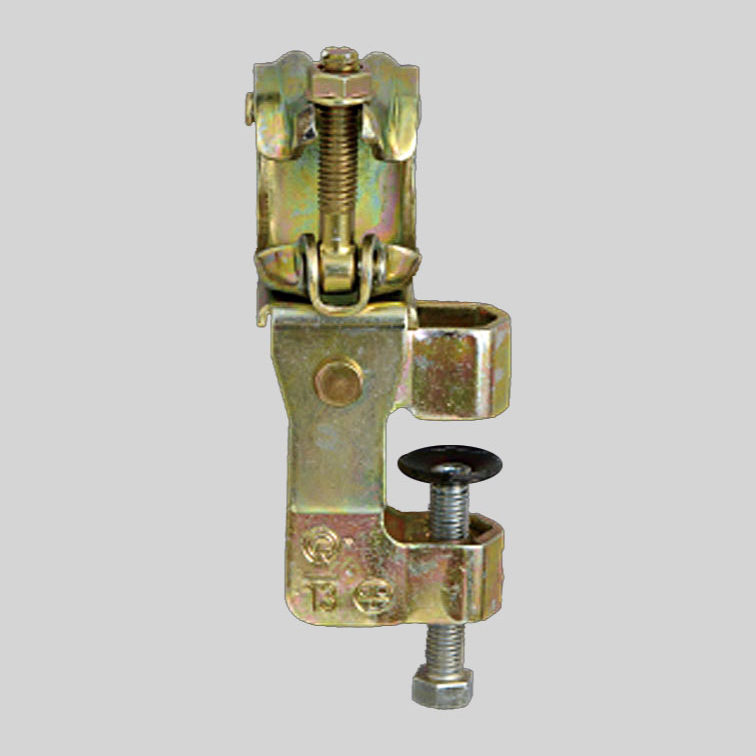

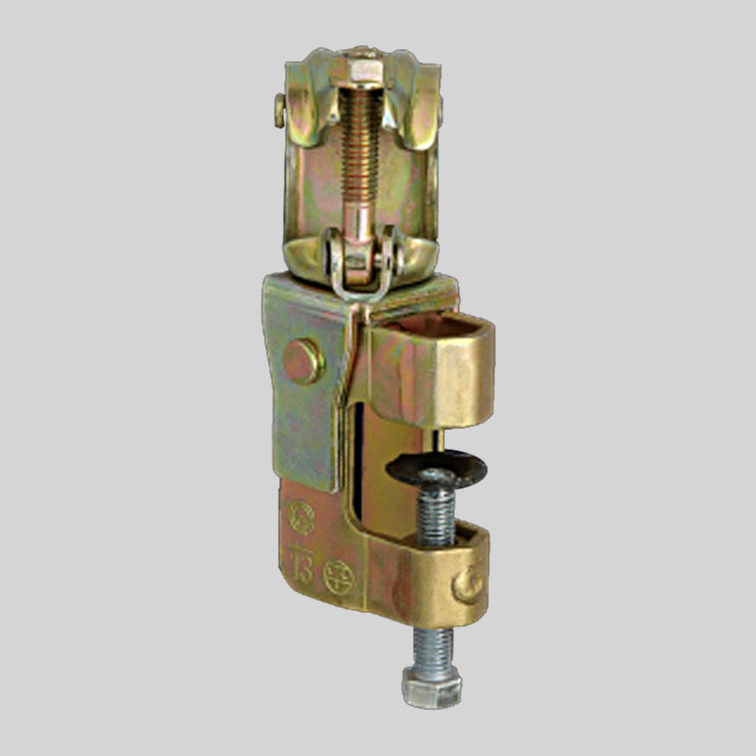

Hold clamp -Swivel-

Item Code HCCR-PL
Clamp margin 6mm~30mm
Weight 1.02kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

Certifications PDF

ホールドクランプ　自在

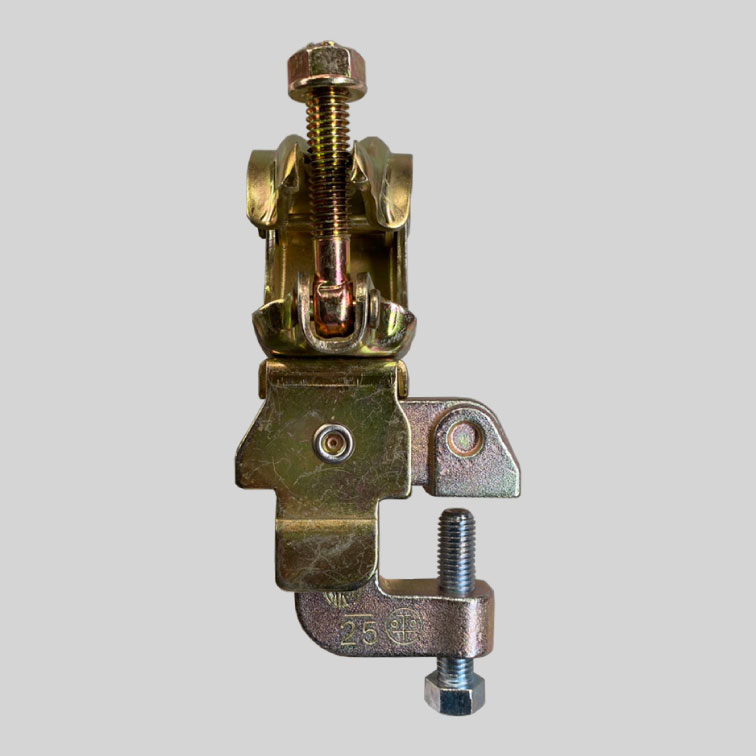

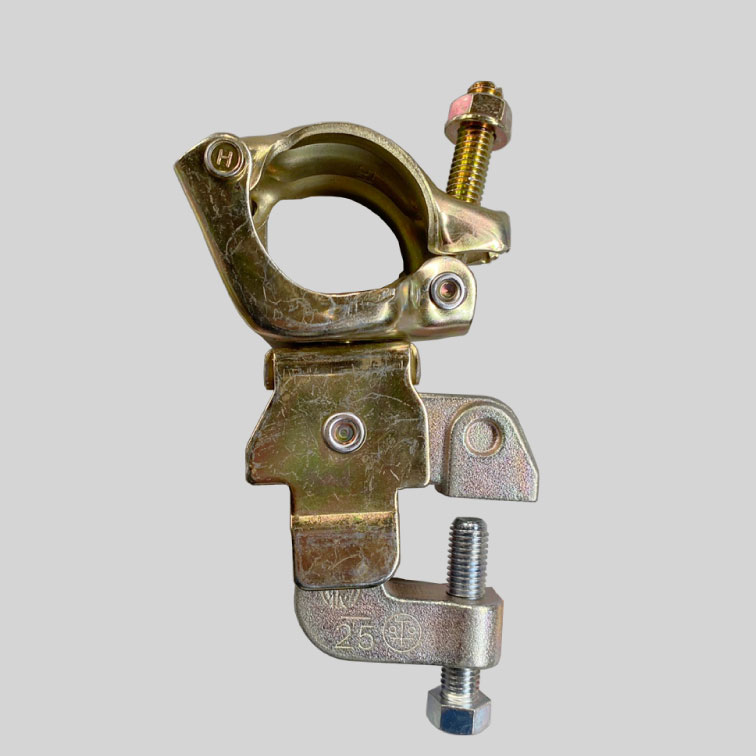

Beam coupler -Swivel/Right angle- :HCCR-Swivel/Right angle

Item Code HCCR
Type for 48.6 and 42.7
Clamp margin 6mm~30mm
Weight 1.0kg
Quantity per case 15

仮設工業会認定品

仮設工業会認定品

Certifications PDF

コ型クランプ　固定/自在

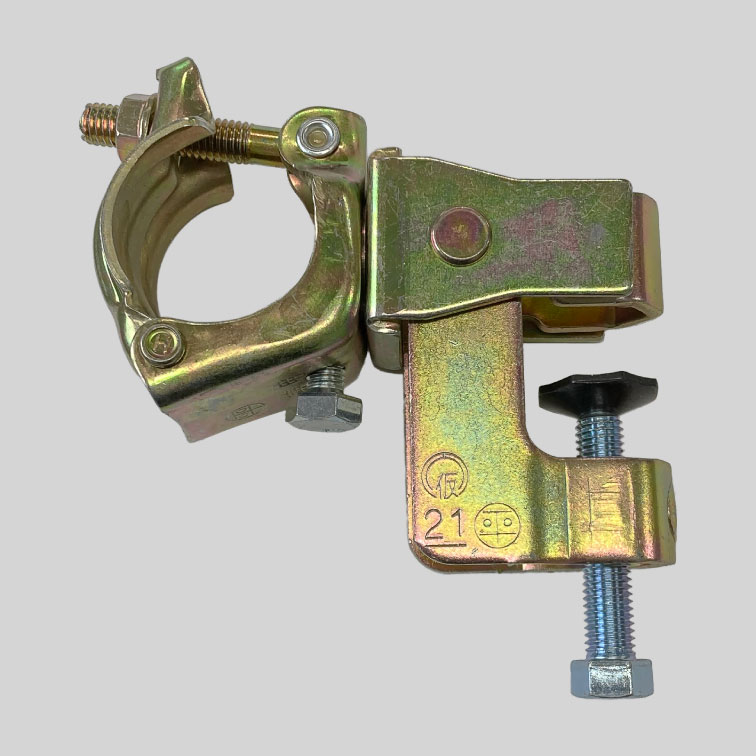

Mithty catch :HCCR-ML

This product alone makes a stationary or universal coupler!
It is best suited for sorting products before shipment or managing yards.
Equipped with a circular washer at the tip of bolt, it is less likely to be loosened by vibrations or other factors.

Item Code HCCR-ML
Type for 48.6 and 42.7
Weight 1.12kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

Certifications PDF

マイティキャッチ
