Temporary materials

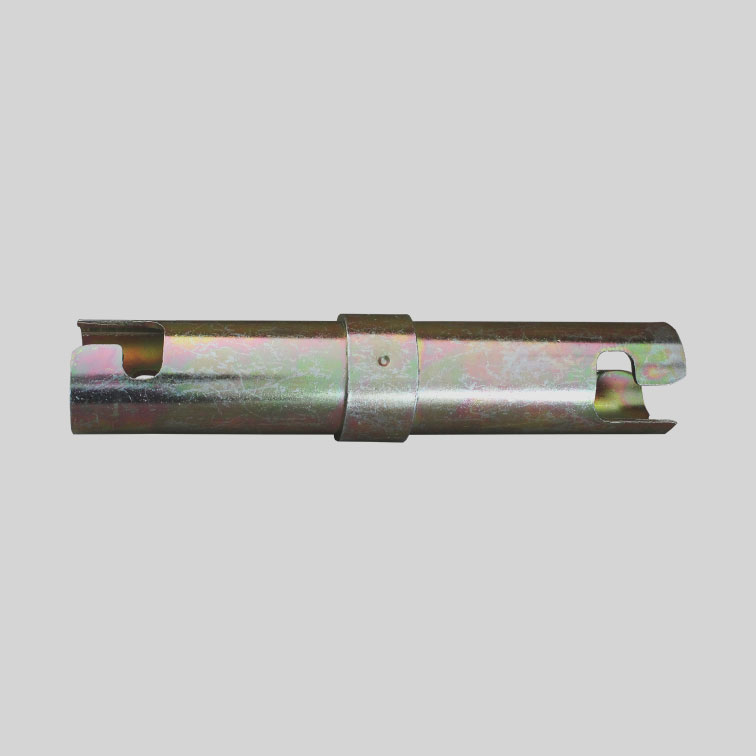

Joint pin :HTJ/HTJ-HD
For scaffold construction, this liner joint can be used because it is compatible with pipes equipped with a pin.
| Item Code | HTJ |
|---|---|
| Type(ｍｍ) | φ48.6 |
| Individual weight(kg) | 0.6 |
| Quantity per case | 30 |

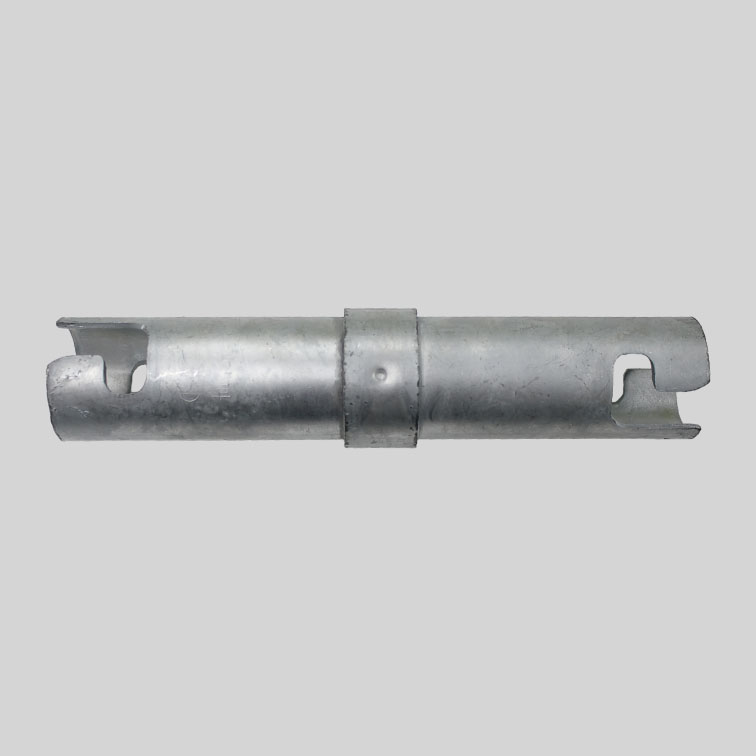

＊Highly corrosion-resistant plating＊
| Item Code | HTJ-HD |
|---|---|
| Type(ｍｍ) | φ48.6 |
| Individual weight(kg) | 0.7 |
| Quantity per case | 30 |

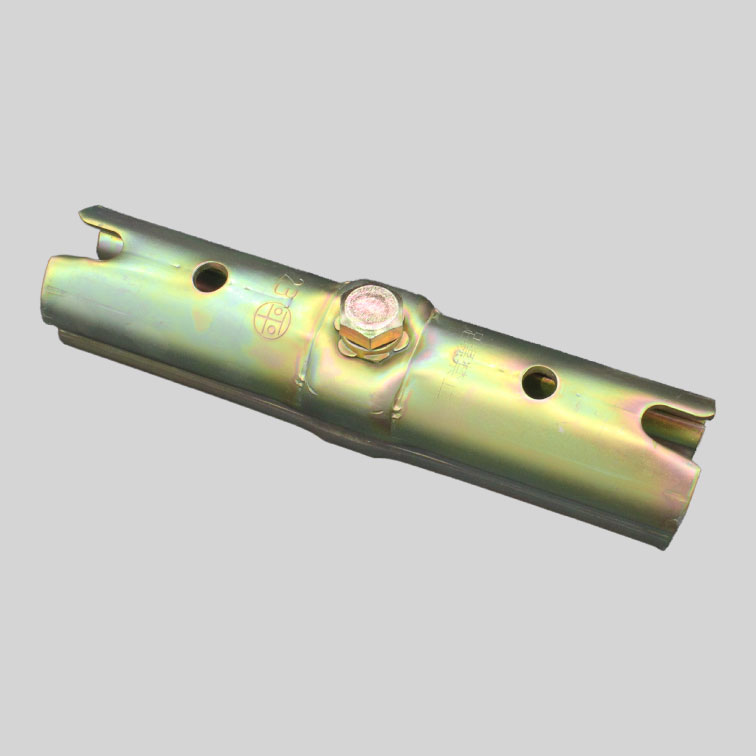

Bone joint：CBJ
With a single bolt, this product smoothly combines a single tube with another. As a joint for single tubes, it is designed for use at points not subjected to a bending or tensile load.
| Item Code | CBJ |
|---|---|
| Type(mm) | φ48.6 |
| Individual weight(kg) | 0.6 |
| Quantity per case | 30 |
Note: This joint is not approved by Scaffolding and Construction Equipment Association of Japan; it cannot be used as a single-tube joint for single-tube scaffolds.

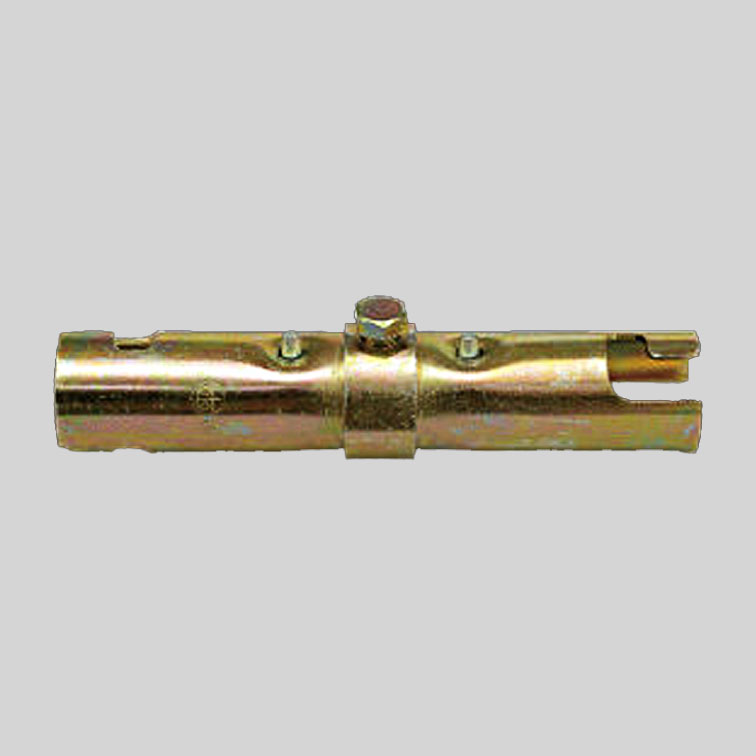

Lock joint :HTJ-RC
The lock joint is a fine product that offers the features of linear and bon joints. It eliminates gaps with pipes (unsteadiness), a drawback of linear joints. You can have it deliver the effect of a bon joint by tightening the bolt at the center. It is also compatible with thin (1.8 thick) single tubes!
| Item Code | HTJ-RC |
|---|---|
| Type(mm) | φ48.6 |
| Individual weight(kg) | 0.8 |
| Quantity per case | 30 |
Corner joint：HCJ
Ideal for corner sections of handrails!
| Item Code | HCJ |
|---|---|
| Type(mm) | φ48.6 |
| Range of use(degree) | 65°~295° |
| Individual weight(kg) | 0.9 |
| Quantity per case | 20 |
