Vertical Frame 617(inch size), Joint Pin

Product Name Vertical Frame 617(inch size)
Item Code HW617A
Size width610inch, height1,700inch

*width600mm, height1,675mm, adjustment hole distance 70mm is available for meter size.

Product Name Joint Pin
Item Code H20Y-80 (adjustment hole distance 80mm)
Size width220mm

*Adjustment hole distance 70mm is available for meter size.

Vertical Frame for Japanese scaffolding

Security door for Temporary Scaffolding SECURIER

48.6 Coupler -Swivel-

This coupler is a trademark product of Heiwa Giken that sells one million units a month.

Type for 48.6
Individual weight 0.7kg
Quantity per case 30

High corrosion resistant plating is also available.

足場用48.6クランプ自在

48.6 Coupler -Right angle-

This coupler is a trademark product of Heiwa Giken that sells one million units a month.

Type for 48.6
Individual weight 0.7kg
Quantity per case 30

足場用48.6クランプ直交

Coupler (Universal type) -Right angle-

Type for 48.6 and 42.7
Individual weight 0.7kg
Quantity per case 30

This product has been approved by SETSCO SERVICES PTE LTD in Singapore. << Download Certifications PDF >>

足場用兼用クランプ直交

Coupler (Universal type) -Swivel-

Type for 48.6 and 42.7
Individual weight 0.7kg
Quantity per case 30

This product has been approved by SETSCO SERVICES PTE LTD in Singapore. << Download Certifications PDF >>

足場用兼用クランプ 自在

42.7 Coupler -Right angle-

This product is mainly used in agricultural applications.

Type for 42.7
Individual weigh 0.67kg
Quantity per case 30

仮設工業会認定品

仮設工業会認定品

42.7クランプ直交足場用

42.7 Coupler -Swivel-

This product is called an agricultural clamp.
As its name suggests, it is often used in agricultural applications (e.g., espalier trellis).

Type for 42.7
Individual weight 0.67kg
Quantity per case 30

仮設工業会認定品

仮設工業会認定品

42.7クランプ自在足場用

Anti-Falling coupler (Universal type)

It is not need to reset the nut owing to the curled top of l-bold.
Reduce the maintenance cost.
Easy to assembly with an electric power tool.

Type for 48.6 and 42.7
Individual weight 0.7kg
Quantity per case 30

ナット抜止め付き兼用クランプ

Triple Coupler -Right angle-

Type for 48.6×48.6×48.6
Individual weight 1.04kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

仮設三連クランプ直交

Triple Coupler -Swivel-

Type for 48.6×48.6×48.6
Individual weight 1.04kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

仮設三連クランプ自在

60.5x48.6 Coupler – Swivel/Right angle –

Type for Φ60.5×Φ48.6
Quantity per case 25

仮設工業会認定品

仮設工業会認定品

仮設60.5x48.6クランプ直交/自在

Square60 x Φ48.6 Coupler (Universal type) – Swivel/Right angle –

Type Square pipe60×Φ48.6
Universal type is for Φ48.6 and Φ42.7
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

足場用クランプ、60角

Square50 x Φ48.6 Coupler (Universal type) – Swivel/Right angle –

Type Square pipe50×Φ48.6
Universal type is for Φ48.6 and Φ42.7
Quantity per case 25

仮設工業会認定品

仮設工業会認定品

50角x48.6(兼用)クランプ直交/自在

仮設機材50角x48.6(兼用)クランプ直交/自在

Square coupler 60×60 – Swivel/Right angle –

Type for Square pipe 60
Quantity per case Right angle:15
Swivel:20

仮設工業会認定品

仮設工業会認定品

60角x60角 直交/自在

Square coupler 50×50 – Swivel/Right angle –

Type for Square pipe 50
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

50角x50角 直交/自在

50角x50角 直交/自在 仮設機材

Light Coupler -Swivel/Right angle-

Be made of high-strength steel to certify safety and endurance strength.
Shorter operating hours and labor cost due to light weight.
Qualified with Incorporated of scaffolding industy(Japan)

Type for 48.6
Individual weight Swivel:0.62kg
Right angle:0.64kg
Quantity per case 30

Weight per case (30pcs)

Usual Coupler 21.0kg
Light Coupler 18.5kg

ライトクランプ 直交/自在

ライトクランプ 直交/自在 仮設機材

Dimer clamp – Swivel/Right angle –

This a clamp that uses SuperDyma (a pre-plated steel sheet) developed by Nippon Steel & Sumitomo Metal Corporation. Its corrosion resistance, approximately 15 times that of hot-dip galvanization, surely increases the service life of clamps. It is highly rated as a clamp for solar panel bases.

Individual weight 0.7kg
Quantity per case 30

The bolts and rivets are hot-dip galvanized.

仮設工業会認定品

兼用ダイマクランプ 直交/自在

Flange nuts for coupler (width of 7/16)

We provide flange nuts with a width of 7 and 16 inches for clamps.

Note: The sizes are in inches, which are not compatible with sizes in millimeters (M screws).

仮設工業会認定品

クランプ用フランジナット(w7/16)

Joint pin

For scaffold construction, this liner joint can be used because it is compatible with pipes equipped with a pin.

Range of use for 48.6
Individual weight 0.55kg
Quantity per case 30

直線ジョイント

Bone joint

With a single bolt, this product smoothly combines a single tube with another. As a joint for single tubes, it is designed for use at points not subjected to a bending or tensile load.

Range of use for 48.6
Individual weight 0.6kg
Quantity per case 30

Note: This joint is not approved by Scaffolding and Construction Equipment Association of Japan; it cannot be used as a single-tube joint for single-tube scaffolds.

仮設工業会認定品

仮設工業会認定品

ボンジョイント

Corner joint

Item Code HCJ
Range of use 65°~220°
Individual weight 0.78kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

コーナージョイント

Lock joint

The lock joint is a fine product that offers the features of linear and bon joints. It eliminates gaps with pipes (unsteadiness), a drawback of linear joints. You can have it deliver the effect of a bon joint by tightening the bolt at the center. It is also compatible with thin (1.8 thick) single tubes!

Type for 48.6
Individual weight 0.7kg
Quantity per case 30

[Download product catalog]

ロックジョイント

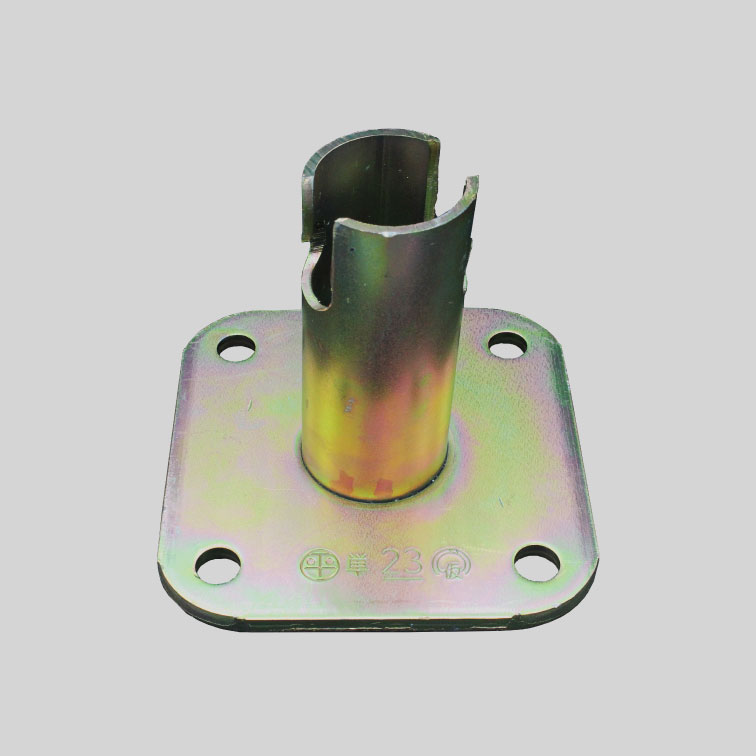

Base plate

Type 48.6
Individual weight 0.69kg
Individual weight 25

固定ベース仮設機材

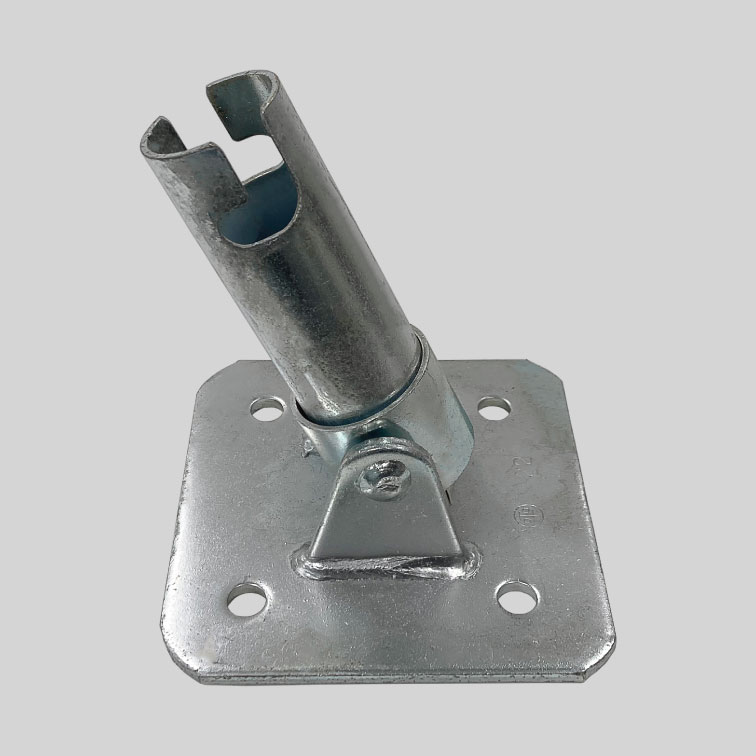

Swivel base plate

Type 48.6
Individual weight 1.5kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

自在ベース仮設機材

Jack Base

Type 34×380L
Individual weight 3.3kg
Quantity per case 6

A long jack base with a diameter of 34, length of 600, and individual weight of 4.7 kg (not approved).

ジャッキベース仮設機材

Swivel Jack Base

Type 34×380
Individual weight 3.6kg
Quantity per case 5

仮設工業会認定品

仮設工業会認定品

自在ジャッキベース仮設機材

Slide Bracket HGB500/750/1000

Type Length of bracketing
HGB500 300mm~500mm
HGB750 500mm~750mm
HGB1000 750mm~1000mm

HGBブラケット 500型/750型/1000型

Coupler Set

Type for 48.6 and 42.7
Individual weight 0.44kg
Quantity per case 40

仮設工業会認定品

足場用カプラーセット

Wedge head couplerwith nut

Type 48.6×42.7
Use bolt size W1/2×32mm
Individual weight 0.4kg
Quantity per case 50

仮設工業会認定品

先端カプラー(ボルト付)仮設機材

Foldable bracket 300Type

Type 300Type
Weight 2.5kg
Quantity per case 5

折り畳みブラケット 300タイプ

Foldable bracket 500Type

Type 500Type
Weight 2.7kg
Quantity per case 5

折り畳みブラケット 500タイプ

Net bracket A

Type for Φ48.6 and Φ42.7
Slide range 334mm~509mm
Weight 2.3kg
Surface-finishing hot dip

仮設工業会認定品

仮設工業会認定品

ネットブラケット A型

Net bracket B

Type for Φ48.6 and Φ42.7
Slide range 134mm~240mm
Weight 1.8kg
Surface-finishing hot dip

仮設工業会認定品

仮設工業会認定品

ネットブラケット B型

Scaffold chain

Manufactured by KONDOTEC INC.
Size(stock) 2.0M
3.0M
4.0M
Surface-finishing Unichrome

We can custom make a chain in a different size.

仮設工業会認定品

仮設工業会認定品

足場チェーン

Mesh Container

The box pallet can be easily assembled and folded, providing effective use of storage spaces.

Item Code Width Length Overall height Net dimensions Load capacity Surface-finishing Individual weight List price
HP-1U 500mm 800mm 540mm 30×30mm 300kg Electroplated 21.0kg 9,980 JPY
HP-2U 800mm 1000mm 840mm 50×50mm 1500kg Electroplated 53.5kg 23,440 JPY
HP-2D 800mm 1000mm 840mm 50×50mm 1500kg hot dip 53.5kg 26,320 JPY
HP-3U 1000mm 1200mm 890mm 50×50mm 2000kg Electroplated 83.0kg 35,680 JPY
HP-3D 1000mm 1200mm 890mm 50×50mm 2000kg hot dip 83.0kg 39,800 JPY

* It is not a pallet to be hoisted. Please do not hoist it.
* When you stack the products, please pay extra attention not to cause an accident.

仮設工業会認定品

仮設工業会認定品

Mesh Sheet

Flame-retardant mesh sheets Anti-scattering mesh sheets
Item Code UK-333 UK-777 #10000U
Mass(g/m²) 450 420 140
Mesh size(mm) 1 3 0.75
Solidity ratio(Ø) 0.90 0.67 0.78
Tensile strength(N/3cm) vertical 2131 1843 688
horizon 2050 1660 652
Stretch(mm) vertical 64.3 55.8 44.6
horizon 65.5 56.8 45.2
Tensile strength × Stretch(kN/3cm) vertical 136.9 102.9 30.9
horizon 134.2 94.3 29.5
Eyelet tensile strength(kN) vertical 1.62 1.46 0.53
horizon 1.66 1.32 0.55
Flame retardancy Compliant Compliant Compliant
Applicable standard Scaffolding and Construction Equipment Association of Japan.
The Japanese Fire Services Act.
Scaffolding and Construction Equipment Association of Japan.
The Japanese Fire Services Act.
The Japanese Fire Services Act.

* The figures above are measured values, not guaranteed figures.
* Only one type is approved by Scaffolding and Construction Equipment Association of Japan.
* We provide a variety of types.
* For specifications (size and eyelet pitch), please consult our sales team.

Raschel net

Manufactured by Type Size
Ichikawa-gyomou.inc Non-flame retardant(Picture)
(Blue) Net dimensions:15mm
0.5mx6.0m
0.3mx6.0m
Non-flame retardant
(White) Net dimensions:15mm
0.5mx6.0m
0.3mx6.0m

仮設工業会認定品

ラッセルネット

Tube pipe electrogalvanizing/hot dip

Surface treatment: Two types are available?electrogalvanizing (pre-plating) and hot-dip galvanizing.
The product can be with or without a pin.

Length Weight
1.0M 2.73kg
1.5M 4.10kg
2.0M 5.46kg
3.0M 8.19kg
4.0M 10.92kg
5.0M 13.65kg
6.0M 16.38kg

We keep these products in stock.
* Only pre-plated tubes are in stock.
The products are in stock in Chubu business office, Ibaraki Center, and Tohoku business office.
For information on the prices and others, please contact us.

仮設工業会認定品

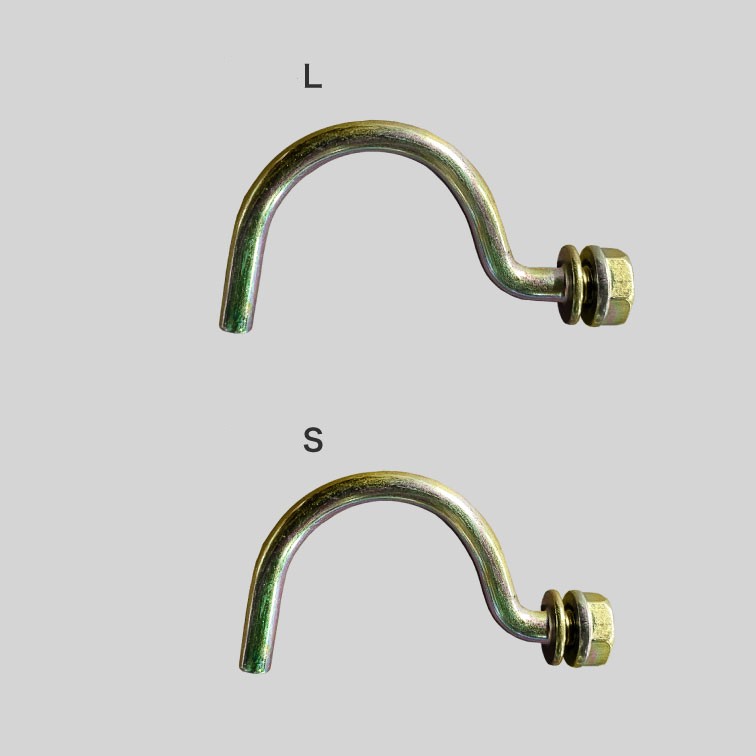

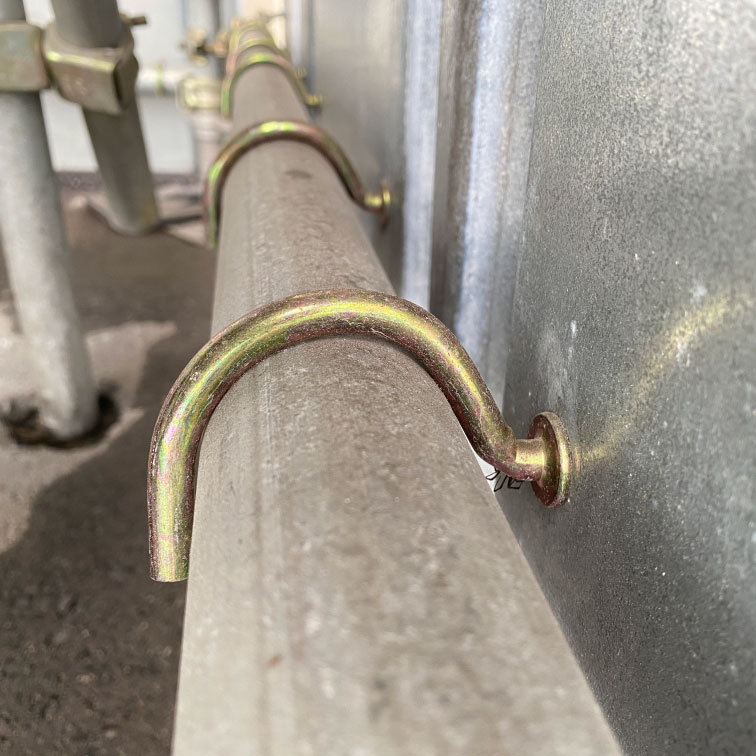

Hock bolt

Size:S

Application for temporary enclosure
Weight 20.0kg(one case)
Quantity per case 300

Size:L

Application for temporary enclosure
Weight 20.0kg(one case)
Quantity per case 300

* The product’s size in the picture is S.

仮設工業会認定品

フックボルトSタイプ

Annealed wire

Type Weight Quantity
#08 25kg 50kg
#10 25kg 50kg
#12 25kg 50kg

* Boxed wires are also available.

なまし番線

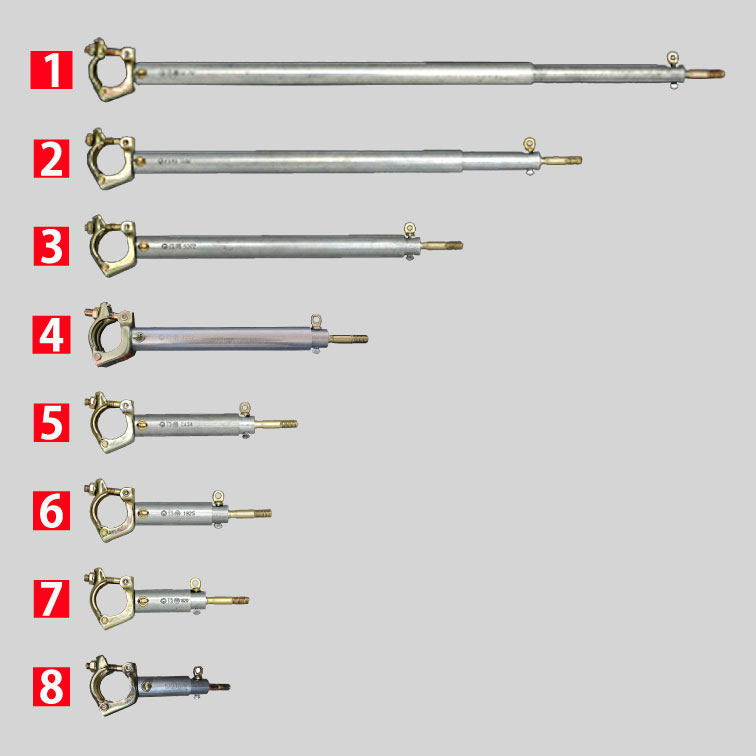

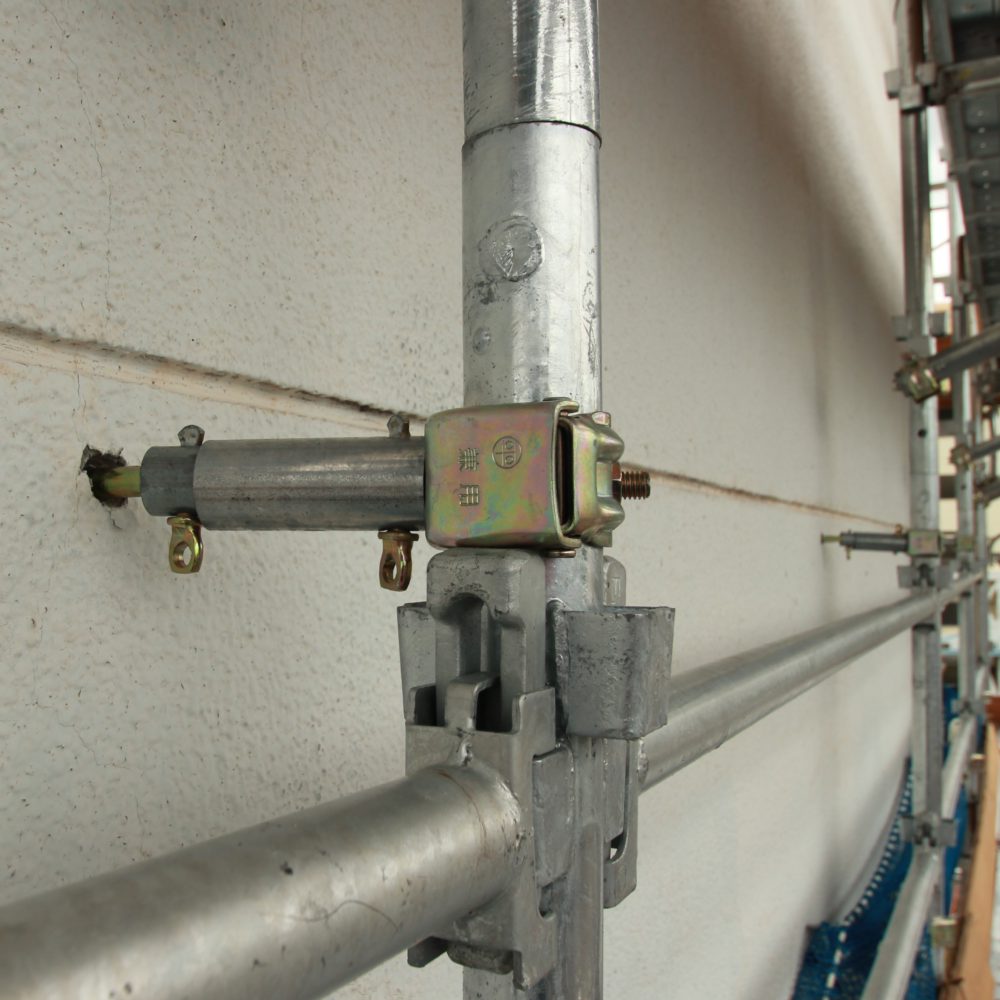

Wall connector brackets HG14-17

Range of movement 140mm~165mm
Weight
Quantity per case 25

HG壁つなぎ 14-17

Wall connector brackets HG16-20

Range of movement 160mm-200mm
Weight 0.8kg
Quantity per case 25

仮設工業会認定品

仮設工業会認定品

HG壁つなぎ 16-20

Wall connector brackets HG19-25

Range of movement 190mm-250mm
Weight 1.0kg
Quantity per case 25

仮設工業会認定品

仮設工業会認定品

HG壁つなぎ19-25

Wall connector brackets HG24-34

Range of movement 240mm-340mm
Weight 1.1kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

HG壁つなぎ 24-34

Wall connector brackets HG33-52

Range of movement 330mm-520mm
Weight 1.7kg
Quantity per case 15

仮設工業会認定品

仮設工業会認定品

HG壁つなぎ 33-52

Wall connector brackets HG50-72

Range of movement 500mm-720mm
Weight 1.9kg
Quantity per case 10

仮設工業会認定品

仮設工業会認定品

HG壁つなぎ 50-72

Wall connector brackets HG70-92

Range of movement 700mm-920mm
Weight 2.2kg
Quantity per case 10

仮設工業会認定品

仮設工業会認定品

HG壁つなぎ 70-92

Wall connector brackets HG90-112

Range of movement 900mm-1120mm
Weight 2.7kg
Quantity per case 10

仮設工業会認定品

仮設工業会認定品

HG壁つなぎ 90-112

Pile

The tip and washer are castings, which are robust and less likely to break. You can safely drive the product into asphalt.

Type 48.6
Size HP-10 1100mm
HP-15 1600mm
HP-20 2100mm

仮設工業会認定品

パイル

Pile & Tip

Type for 48.6 or 42.7
Weight Pile:11.5kg(case)
Tip:18.0kg(case)
Quantity per case 48.6:120
42.7:Pile180,Tip150

仮設工業会認定品

打ち込み 先端/座金

Universal step 600/900

Four phases of adjustment is possible. (40,48,55,66)

Type for 600mm and 900mm
Weight 600/3.9kg, 900/4.8kg
Quantity per case 5

仮設工業会認定品

仮設工業会認定品

自在ステップ 600幅/900幅

Mesh-type universal step

This product uses a footboard section made of expanded metal.

Width 600mm
Weight 4.5kg

仮設工業会認定品

仮設工業会認定品

自在ステップ 600幅メッシュタイプ

End Stopper

This product uses a (replaceable) dual-purpose type coupler.

Range of movement 600mm~1219mm

仮設工業会認定品

仮設工業会認定品

エンドストッパー

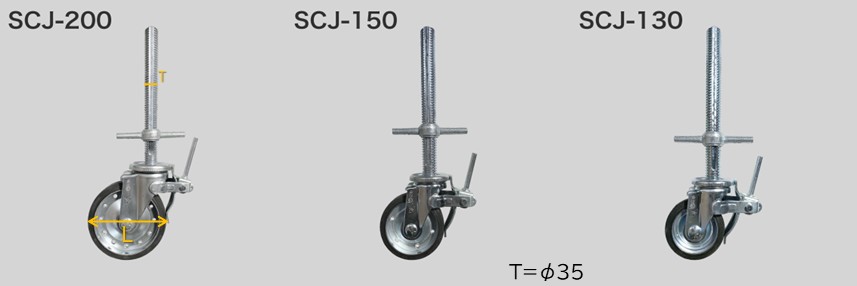

Caster with a jack (SCJ) 130/150/200

Manufactured by NANSIN.inc
Type SCJ130(for 130),SCJ150(for 150),SCJ200(for 200)
Quantity per case 2

The product is uni-chrome plated (white plated).

仮設工業会認定品

仮設工業会認定品

キャスターSCJ

Caster without a jack (SCP) 130/150/200

Manufactured by NANSIN.inc
Type SCP130(for 130),SCP15(for 150),SCP200(for 200)
Quantity per case 130/150:4
200:2

The product is uni-chrome plated (white plated).

仮設工業会認定品

仮設工業会認定品

キャスターSCP

Pipe cap with Reflective seal

Type for Φ48.6(Tube pipe),D19~D25(Rebar)
Weigh 3.2kg(case)
Quantity per case 200

Pキャップ(反射シール付)

Coupler cover

Plastic cover designed specifically for couplers.

Weight 3.0kg(case)
Quantity per case 100

クランプカバー

Single coupler (Universal type) with a hole/ without hole

Type for 48.6 and 42.7
Weight 0.3kg
Quantity per case 60

* This clamp can be with or without a hole (13 diameters).
* Surface treatment: You can choose from among three choices: electroplating, hot-dip galvanization, and no plating.

仮設工業会認定品

仮設工業会認定品

兼用単クランプ 穴付/穴無

Special coupler – with a welded bolt –

This product is a clamp with welded bolts of w1/2 x 32 mm. It comes with nuts and spring washers.

Type for 48.6 and 42.7
Weight 0.4kg
Quantity per case 50



仮設工業会認定品

仮設工業会認定品

ボルト溶接クランプ

Sheet coupler (Universal type)

Type for 48.6 and 42.7
Weight 0.4kg
Quantity per case 50

仮設工業会認定品

仮設工業会認定品

兼用シートクランプ

Chain hanger coupler

Type for H-steel
Coupler margin 6mm~30mm
Weight 0.8kg
Quantity per case 20

チェーン吊りクランプ

Rafter fixing coupler

This product is regularly used in many areas where snow accumulates. Our rafter retaining clamps are made of domestic materials, providing a sufficient strength.

Type Fixed,Swivel,Parallel
Size for 48.6 and 42.7
Weight 0.4kg
Quantity per case 50

仮設工業会認定品

仮設工業会認定品

垂木止めクランプ 固定/自在/平行

垂木止めクランプ 固定/自在/平行

Rafter fixing coupler (45)

Type Fixed,Swivel,Parallel
Size for 48.6 and 42.7
Weight 0.44kg
Quantity per case 50

The rafter size must not be larger than a 45 square.

仮設工業会認定品

垂木止めクランプ45型 垂直/平行/自在

垂木止めクランプ45型 垂直/平行/自在

Battledore clamp

Type for 48.6 and 42.7
Screw diameter W1/2
Weight 0.6kg
Quantity per case 40

仮設工業会認定品

仮設工業会認定品

羽子板クランプ

Plinth block coupler

This product is best suited for retaining footboards used as baseboards.

Type for 48.6 and 42.7
Weight 0.5kg
Quantity per case 30

仮設工業会認定品

仮設工業会認定品

幅木止めクランプ

Sheet coupler (Universal type)

Type for 48.6 and 42.7
Weight 0.45kg
Quantity per case 50

兼用養生クランプ

Coupler for Cross Braces (Universal type)

This product is a single clamp with a welded (hooked-pin type) gravity lock.

Type for 48.6 and 42.7
Weight 0.5kg
Quantity per case 50

* We do not provide spring-type clamps.

仮設工業会認定品

仮設工業会認定品

筋交い止めクランプ

Net holder

Type for H-steel
Clamp margin 6mm~30mm
Weigh 0.7kg
Quantity per case 25

仮設工業会認定品

仮設工業会認定品

ネットホールド

Hold clamp -Right angle-

This clamp is equipped with a fixing washer at the tip of the tightening bolt, providing stability.

Type for 48.6 and 42.7
Clamp margin 6mm~30mm
Weight 1.02kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

ホールドクランプ 直交

Hold clamp -Swivel-

Item Code HCCR-PL
Clamp margin 6mm~30mm
Weight 1.02kg
Quantity per case 20

仮設工業会認定品

仮設工業会認定品

ホールドクランプ 自在

Beam coupler -Swivel/Right angle-

Item Code HCCR
Type for 48.6 and 42.7
Clamp margin 6mm~30mm
Weight 1.0kg
Quantity per case 15

コ型クランプ 固定/自在

Mithty catch

This product alone makes a stationary or universal coupler!
It is best suited for sorting products before shipment or managing yards.
Equipped with a circular washer at the tip of bolt, it is less likely to be loosened by vibrations or other factors.

Item Code HCCR-ML
Type for 48.6 and 42.7
Weight 1.12kg
Quantity per case 20

マイティキャッチ

Earth-retaining steel sheet

From Nikken Fence & Metal Corporation

[Applications of the earth-retaining steel sheet]
● Afforestation
● Prevention of road shoulder collapses
● Retention of slope-toe earth in developing land
● Emergency actions for disasters
(It is also often used for retaining earth in cultivated land.)

★ Easy to assemble, the product reliably retains earth
Consisting of only steel sheets and columns, the product can be easily and quickly assembled. With a tip specially treated, the column is easy to drive vertically. In addition, the product is based on the tensile strength of the steel sheet, which retains earth more strongly and reliably than the conventional methods.

★A wide range of applications and low costs for installation
With the flexibility of the steel sheets, the product can be formed to a desired shape according to the geographical features, providing a wide range of earth retention applications. In addition, it can be assembled with light work such as column driving and steel-sheet insertion, requiring lower costs.

★Perfect corrosion resistance
The product uses the High Color from Nippon Steel & Sumitomo Metal as the steel sheet and pipes electroplated and then baked as the column, providing an outstanding corrosion resistance.

★A variety of available colors matching natural landscapes
The product is available in three colors: greenish brown, dark brown, and green.



Earth-retaining steel sheets are used in many applications in Tokyo, Chiba, and Kanagawa prefectures. In the other areas, however, they are almost not used. We do hope that customers across Japan will experience the effect of the earth-retaining steel sheet.
If you are interested in using the earth-retaining steel sheet, please contact a business office of Heiwa Giken.
[Download PDF]

クランプ・一側足場の平和技研

48.6 Coupler -Right angle-

Type for 48.6
Individual weight 0.7kg
Quantity per case 30

CONCEPT

Through the manufacture and sale of temporary equipment for building and civil engineering,
we have been making efforts to meet the diverse needs of our customers.
Now, we live a new era of technology, where the building techniques are becoming more and more advanced and diversified.
In step with these advanced and diversified techniques,
we are also focusing our efforts on developing higher-quality products and making environmentally-friendly products.
We think about people and the environment to make proposals toward the future.
