PRODUCT

Standards (BUILDER) :HA

Item Code Type Weight List price
1HA-36 3,600mm 13.3kg 12,500 JPY
2HA-27 2,700mm 10.0kg 10,200 JPY
3HA-17 1,800mm 7.0kg 7,400 JPY
4HA-09 900mm 3.8kg 4,300 JPY
5HA-076 740mm 3.4kg Open Price
6HA-045 450mm 2.1kg 2,800 JPY
7HA-081* 810mm 3.3kg Open Price

*is not approved by Scaffolding and Construction equipment association of Japan.

仮設工業会認定品

ドブメッキ

Brackets (BUILDER) :HB

Item Code Type Weight List price
1HB-40 Column spacing 600mm 2.7kg 3,600 JPY
2HB-25 Column spacing 400mm 1.9kg 3,100 JPY

仮設工業会認定品

ドブメッキ

クサビ足場ヘイワビルダーブラケット

Overhung Brackets (BUILDER) :HBH

Item Code Type Weight List price
1HBH-40 Column spacing 600mm 3.8kg 5,200 JPY
2HBH-25 Column spacing 400mm 2.9kg 4,600 JPY
3HBH-20 * Column spacing 200mm 1.8kg 3,800 JPY

*is not approved by Scaffolding and Construction equipment association of Japan.

仮設工業会認定品

ドブメッキ

Handrail (BUILDER) :HC

Item Code Type Weight List price
1HC-18 1,800mm 4.3kg 4,300 JPY
2HC-12 1,200mm 3.3kg 3,300 JPY
3HC-09 900mm 2.5kg 2,800 JPY
4HC-06 600mm 1.7kg 2,200 JPY
5HC-04 400mm 1.3kg 1,800 JPY
6HC-03 300mm 1.1kg 1,700 JPY
7HC-02 200mm 0.8kg 1,600 JPY

仮設工業会認定品

ドブメッキ

クサビ足場ヘイワビルダー手摺

Center Adapter

Item Code Type Weight List price
1HDS-A1 0.7kg 1,500 JPY
2HDS-A2 1.0kg Open Price

ドブメッキ

認定外製品

クサビ足場ヘイワビルダー、センターアダプター

Plank Width500 (BUILDER) :HD

Item Code Width Weight List price
HD-5018 500 x 1,800mm 15.5kg 17,000 JPY
HD-5015 500 x 1,500mm 13.2kg 17,000 JPY
HD-5012 500 x 1,200mm 10.9kg 14,000 JPY
HD-5009 500 x 900mm 8.3kg 11,500 JPY
HD-5006 500 x 600mm 5.9kg 10,000 JPY

仮設工業会認定品

ドブメッキ

Plank Width400 (BUILDER) :HD

Item Code Width Weight List price
HD-4018 400 x 1,800mm 14.0kg 13,500 JPY
HD-4015 400 x 1,500mm 12.0kg 13,500 JPY
HD-4012 400 x 1,200mm 10.1kg 10,500 JPY
HD-4009 400 x 900mm 7.8kg 8,300 JPY
HD-4006 400 x 600mm 5.8kg 6,700 JPY

仮設工業会認定品

ドブメッキ

Plank Width300 (BUILDER) :HD

Item Code Width Weight List price
HD-3018 300 x 1,800mm 11.5kg Open Price
HD-3015 300 x 1,500mm 10.0kg Open Price
HD-3012 300 x 1,200mm 8.5kg Open Price
HD-3009 300 x 900mm 7.2kg Open Price
HD-3006 300 x 600mm 5.0kg Open Price

仮設工業会認定品

ドブメッキ

Plank Width250 (BUILDER) :HD

Item Code Width Weight List price
HD-2518 250 x 1,800mm 10.1kg 10,200 JPY
HD-2515 250 x 1,500mm 8.7kg 10,200 JPY
HD-2512 250 x 1,200mm 7.2kg 8,500 JPY
HD-2509 250 x 900mm 5.6kg 6,900 JPY
HD-2506 250 x 600mm 4.3kg 5,600 JPY
HD-2504 250 x 400mm 3.3kg 4,800 JPY

仮設工業会認定品

ドブメッキ

Plank HDS-Series

Item Code Type Weight List price
HDS-2518 250 x 1,800mm 9.6kg 11,000 JPY
HDS-2512 250 x 1,200mm 6.8kg 9,500 JPY
HDS-2509 250 x 900mm 5.2kg 8,100 JPY
HDS-1518 150 x 1,800mm 8.3kg Open Price
HDS-1512 150 x 1,200mm 5.8kg Open Price
HDS-1509 150 x 900mm 4.4kg Open Price

ドブメッキ

認定外製品

クサビ足場ヘイワビルダー踏板

Pipe Jack :HE

Item Code Type Weight List price
1HE-6 L=600mm(fixed) 2.8kg 3,600 JPY
2HE-6S L=600mm(Swivel) 3.0kg 4,200 JPY

仮設工業会認定品

ドブメッキ

クサビ足場ヘイワビルダー、パイプジャッキ

Pipe Jack – to the wall –

Item Code Type Weight List price
1HE-6P
(Jack)
2.3kg 4,100 JPY
2HJH-20
(Jack Holder)
1.1kg 1,800 JPY

ドブメッキ

クサビ足場ヘイワビルダー壁あてジャッキ

Foot Plate Holder

Weight Surface-finishing List price
0.7kg hot dip 2,600 JPY

*This folder does not come with a jack.

ドブメッキ

認定外製品

壁あてジャッキ用 踏板ホルダー

Ladder HF

Item Code Type Weight List price
HF-18 1,800mm 13.0kg Open Price
HF-27 2,700mm 19.5kg Open Price
HF-36 3,600mm 25.0kg Open Price

Beam Frames :HG

Item Code Type Weight List price
HG-36 2 Span (3600mm) For Truss 28.0kg Open Price
HG-54 3 Span (5400mm) For Truss 43.6kg Open Price

仮設工業会認定品

ドブメッキ

Half Steel stairs

This product is a half ladder stair with a plate at the bottom.

Item Code Weight List price
HH-19HB 10.4kg Open Price

ドブメッキ

認定外製品

Half Steel stairs

This product is a half ladder stair with a hook at the bottom.

Item Code Weight List price
HH-19HF 10.2kg 19,000 JPY

ドブメッキ

認定外製品

Steel stairs :HH-19

Item Code Type Weight List price
HH-19 7 steps 18.0kg 29,000 JPY

仮設工業会認定品

ドブメッキ

Steel stairs

Aluminum Stairs

Item Code Type Weight List price
HH-19AL 7 steps 12.0kg open price

仮設工業会認定品

クサビ足場ヘイワビルダーアルミ階段 HH-19AL

Cross Braces :HK

Item Code Weight List price
HK-09 2.2kg 4,600 JPY
HK-12 2.5kg 4,900 JPY
HK-18 3.9kg 6,200 JPY

仮設工業会認定品

ドブメッキ

Lock Pin

Item Code Weight Price
HMN-1 0.06kg Open Price

電気メッキ

クサビ足場ヘイワビルダーロックピン

Lock Pin

Item Code Weight Price
HMN-2 0.04kg Open Price

電気メッキ

後付けロックピン HMN-2

Side Adapter HM120

This product is a side adapter for narrow scaffolds.

Item Code Weight List price
HM-120 0.6kg 1,300 JPY

ドブメッキ

認定外製品

Base (for square140mm)

Type Color Quantity per case List price
L-base(plastic under base)for square140mm

(200*555mm)

Black 12 pieces6 4,600 JPY

Depending on the order quantity, we can make the product in the color specified by you.

下屋用ベース (140角)

W-Base (Plastic)

This product is best suited for use in corner lots in construction sites.
The standard product color is black. Depending on the order quantity, you can specify the desired color and stamp.

Type Quantity per case List price
W-base (Plastic) for Square 140mm(140mm*140mm) 50 open price

Wベース(プラスチック)

Plastic Under base

This product is a plastic jack-base support.

Item Code Weight/type List price
HPB-24P 0.26kg/150mm*150mm 1,100 JPY

The standard products in stock are black. If you wish a different color, please consult us.

プラアンダーベース HPB-24P

Steel Under base

This product is an iron support for jack bases.

Item Code Type Weight List price
HPB-24S for Square 140mm(240mm*240mm) 0.7kg 1,100 JPY

ドブメッキ

認定外製品

鋼製アンダーベース HPB-24S

Stair handrails :SOR-1

Item Code Type Weight List price
SOR-1 both Inch and meter 17.3kg open price

Auxiliary Step HQ-N

Item Code Wight List price
HQ-N 4.2kg Open Price

ドブメッキ

認定外製品

補助ステップ HQ-N

TRIANGLE 01 (BUILDER) Preceding Handrail -for Wedge Binding Type- :HASTD

Stationary precedence handrail for the HEIWA Builder, approved by Scaffolding and Construction Equipment Association of Japan

Our original stopper feature has ensured a safer work environment and improved the work efficiency.

Item Code Weight List price Remarks
HASTD-18 8.0kg Open Price
HASTD-15 7.3kg Open Price Build to order
HASTD-12 6.3kg Open Price
HASTD-09 5.5kg Open Price
HASTD-06 4.6kg Open Price Build to order

[Read more]

仮設工業会認定品

ドブメッキ

トライアングル01(ビルダータイプ)

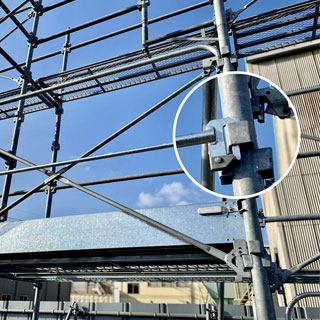

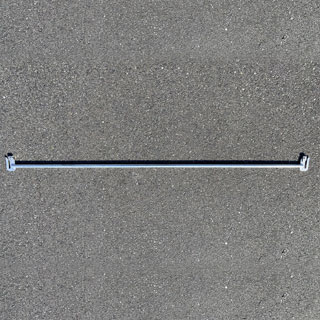

Quick Rail

middle handrail for Preceding handrail(PAP.P
If you additionally need a middle handrail, you
can easily attach it without having to hammer it.

Weight Standard
1.85kg Φ21.7 L=1800mm
2.80kg Φ31.8 L=1800mm

MADE TO ORDER
The product is designed specifically for outer pockets
Note: Please do not use this product as a scaffold.

ドブメッキ

認定外製品

Swivel Wedge

This product is best suited for use at corners.

Item Code Weight List price
HSW-200 0.8kg Open Price

ドブメッキ

認定外製品

足場用自在クサビ

Climb Step

Item Code Weight List price
HSD-1 1.1kg 2,500 JPY

ドブメッキ

認定外製品

足場用昇降ステップ

Entering Prevention Door 6090

Designed for both of H-shaped frames and one-side applications, this product is compatible with a span between 600 and 900 mm.

Usable in four different applications, this product is economical and rational.

Type Surface-finishing Weight List price
600mm~900mm Corresponding hot dip
(Coupler:Electroplated)
15.0kg Open Price

ドブメッキ

認定外製品

クサビ足場ヘイワビルダー進入防止扉

Entering Prevention Bar

Item Code Type Weight List price
1.3kg 3,000 JPY

ドブメッキ

認定外製品

足場用侵入防止バー

Protective shelf (BUILDER)

This product is a simplified Asagao for side scaffolds.
The conventionally assembly method uses pipes, scaffold boards, and others. If you use the Builder Asagao, you have only to wedge it and spread a composite panel. This decreases danger and reduces working hours.

Weight List price
9.8kg Open Price

ドブメッキ

認定外製品

ビルダーアサガオ

HEIWA BUILDER priced catalogue

Wedge Binding Type (BUILDER) List price

[Download PDF]

クサビ足場ヘイワビルダー

HEIWA smart Asagao – protective shelf –

クサビ式足場用アサガオ
