PRODUCT
HEIWA BUILDER
Standards (BUILDER) :HA
| Item Code | Type | Weight | List price |
|---|---|---|---|
| 1HA-36 | 3,600mm | 13.3kg | 12,500 JPY |
| 2HA-27 | 2,700mm | 10.0kg | 10,200 JPY |
| 3HA-17 | 1,800mm | 7.0kg | 7,400 JPY |
| 4HA-09 | 900mm | 3.8kg | 4,300 JPY |
| 5HA-076 | 740mm | 3.4kg | Open Price |
| 6HA-045 | 450mm | 2.1kg | 2,800 JPY |
| 7HA-081* | 810mm | 3.3kg | Open Price |
*is not approved by Scaffolding and Construction equipment association of Japan.
Brackets (BUILDER) :HB
| Item Code | Type | Weight | List price |
|---|---|---|---|
| 1HB-40 | Column spacing 600mm | 2.7kg | 3,600 JPY |
| 2HB-25 | Column spacing 400mm | 1.9kg | 3,100 JPY |
Overhung Brackets (BUILDER) :HBH
| Item Code | Type | Weight | List price |
|---|---|---|---|
| 1HBH-40 | Column spacing 600mm | 3.8kg | 5,200 JPY |
| 2HBH-25 | Column spacing 400mm | 2.9kg | 4,600 JPY |
| 3HBH-20 * | Column spacing 200mm | 1.8kg | 3,800 JPY |
*is not approved by Scaffolding and Construction equipment association of Japan.
Handrail (BUILDER) :HC
| Item Code | Type | Weight | List price |
|---|---|---|---|
| 1HC-18 | 1,800mm | 4.3kg | 4,300 JPY |
| 2HC-12 | 1,200mm | 3.3kg | 3,300 JPY |
| 3HC-09 | 900mm | 2.5kg | 2,800 JPY |
| 4HC-06 | 600mm | 1.7kg | 2,200 JPY |
| 5HC-04 | 400mm | 1.3kg | 1,800 JPY |
| 6HC-03 | 300mm | 1.1kg | 1,700 JPY |
| 7HC-02 | 200mm | 0.8kg | 1,600 JPY |
Center Adapter
| Item Code | Type | Weight | List price |
|---|---|---|---|
| 1HDS-A1 | – | 0.7kg | 1,500 JPY |
| 2HDS-A2 | – | 1.0kg | Open Price |
Plank Width500 (BUILDER) :HD
| Item Code | Width | Weight | List price |
|---|---|---|---|
| HD-5018 | 500 x 1,800mm | 15.5kg | 17,000 JPY |
| HD-5015 | 500 x 1,500mm | 13.2kg | 17,000 JPY |
| HD-5012 | 500 x 1,200mm | 10.9kg | 14,000 JPY |
| HD-5009 | 500 x 900mm | 8.3kg | 11,500 JPY |
| HD-5006 | 500 x 600mm | 5.9kg | 10,000 JPY |
Plank Width400 (BUILDER) :HD
| Item Code | Width | Weight | List price |
|---|---|---|---|
| HD-4018 | 400 x 1,800mm | 14.0kg | 13,500 JPY |
| HD-4015 | 400 x 1,500mm | 12.0kg | 13,500 JPY |
| HD-4012 | 400 x 1,200mm | 10.1kg | 10,500 JPY |
| HD-4009 | 400 x 900mm | 7.8kg | 8,300 JPY |
| HD-4006 | 400 x 600mm | 5.8kg | 6,700 JPY |

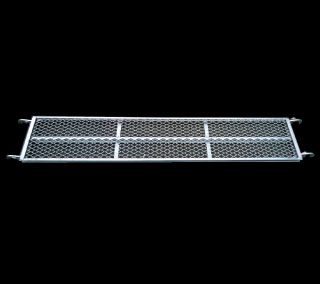

Plank Width300 (BUILDER) :HD
| Item Code | Width | Weight | List price |
|---|---|---|---|
| HD-3018 | 300 x 1,800mm | 11.5kg | Open Price |
| HD-3015 | 300 x 1,500mm | 10.0kg | Open Price |
| HD-3012 | 300 x 1,200mm | 8.5kg | Open Price |
| HD-3009 | 300 x 900mm | 7.2kg | Open Price |
| HD-3006 | 300 x 600mm | 5.0kg | Open Price |
Plank Width250 (BUILDER) :HD
| Item Code | Width | Weight | List price |
|---|---|---|---|
| HD-2518 | 250 x 1,800mm | 10.1kg | 10,200 JPY |
| HD-2515 | 250 x 1,500mm | 8.7kg | 10,200 JPY |
| HD-2512 | 250 x 1,200mm | 7.2kg | 8,500 JPY |
| HD-2509 | 250 x 900mm | 5.6kg | 6,900 JPY |
| HD-2506 | 250 x 600mm | 4.3kg | 5,600 JPY |
| HD-2504 | 250 x 400mm | 3.3kg | 4,800 JPY |
Plank HDS-Series
| Item Code | Type | Weight | List price |
|---|---|---|---|
| HDS-2518 | 250 x 1,800mm | 9.6kg | 11,000 JPY |
| HDS-2512 | 250 x 1,200mm | 6.8kg | 9,500 JPY |
| HDS-2509 | 250 x 900mm | 5.2kg | 8,100 JPY |
| HDS-1518 | 150 x 1,800mm | 8.3kg | Open Price |
| HDS-1512 | 150 x 1,200mm | 5.8kg | Open Price |
| HDS-1509 | 150 x 900mm | 4.4kg | Open Price |
Pipe Jack :HE
| Item Code | Type | Weight | List price |
|---|---|---|---|
| 1HE-6 | L=600mm(fixed) | 2.8kg | 3,600 JPY |
| 2HE-6S | L=600mm(Swivel) | 3.0kg | 4,200 JPY |
Pipe Jack – to the wall –
| Item Code | Type | Weight | List price |
|---|---|---|---|
| 1HE-6P (Jack) |
– | 2.3kg | 4,100 JPY |
| 2HJH-20 (Jack Holder) |
– | 1.1kg | 1,800 JPY |
Foot Plate Holder
| Weight | Surface-finishing | List price |
|---|---|---|
| 0.7kg | hot dip | 2,600 JPY |
*This folder does not come with a jack.
Ladder HF
| Item Code | Type | Weight | List price |
|---|---|---|---|
| HF-18 | 1,800mm | 13.0kg | Open Price |
| HF-27 | 2,700mm | 19.5kg | Open Price |
| HF-36 | 3,600mm | 25.0kg | Open Price |
Beam Frames :HG
| Item Code | Type | Weight | List price |
|---|---|---|---|
| HG-36 | 2 Span (3600mm) For Truss | 28.0kg | Open Price |
| HG-54 | 3 Span (5400mm) For Truss | 43.6kg | Open Price |
Half Steel stairs
This product is a half ladder stair with a plate at the bottom.
| Item Code | Weight | List price |
|---|---|---|
| HH-19HB | 10.4kg | Open Price |
Half Steel stairs
This product is a half ladder stair with a hook at the bottom.
| Item Code | Weight | List price |
|---|---|---|
| HH-19HF | 10.2kg | 19,000 JPY |
Steel stairs :HH-19
| Item Code | Type | Weight | List price |
|---|---|---|---|
| HH-19 | 7 steps | 18.0kg | 29,000 JPY |
Aluminum Stairs
| Item Code | Type | Weight | List price |
|---|---|---|---|
| HH-19AL | 7 steps | 12.0kg | open price |
Cross Braces :HK
| Item Code | Weight | List price |
|---|---|---|
| HK-09 | 2.2kg | 4,600 JPY |
| HK-12 | 2.5kg | 4,900 JPY |
| HK-18 | 3.9kg | 6,200 JPY |
Lock Pin
| Item Code | Weight | Price |
|---|---|---|
| HMN-1 | 0.06kg | Open Price |
Lock Pin
| Item Code | Weight | Price |
|---|---|---|
| HMN-2 | 0.04kg | Open Price |

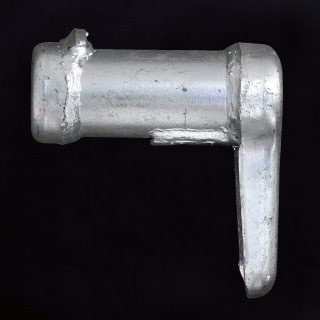

Side Adapter HM120
This product is a side adapter for narrow scaffolds.
| Item Code | Weight | List price |
|---|---|---|
| HM-120 | 0.6kg | 1,300 JPY |
Base (for square140mm)
| Type | Color | Quantity per case | List price |
|---|---|---|---|
| L-base(plastic under base)for square140mm
(200*555mm) |
Black | 12 pieces6 | 4,600 JPY |
Depending on the order quantity, we can make the product in the color specified by you.
W-Base (Plastic)
This product is best suited for use in corner lots in construction sites.
The standard product color is black. Depending on the order quantity, you can specify the desired color and stamp.
| Type | Quantity per case | List price |
|---|---|---|
| W-base (Plastic) for Square 140mm(140mm*140mm) | 50 | open price |
Plastic Under base
This product is a plastic jack-base support.
| Item Code | Weight/type | List price |
|---|---|---|
| HPB-24P | 0.26kg/150mm*150mm | 1,100 JPY |
The standard products in stock are black. If you wish a different color, please consult us.
Steel Under base
This product is an iron support for jack bases.
| Item Code | Type | Weight | List price |
|---|---|---|---|
| HPB-24S | for Square 140mm(240mm*240mm) | 0.7kg | 1,100 JPY |
Stair handrails :SOR-1
| Item Code | Type | Weight | List price |
|---|---|---|---|
| SOR-1 | both Inch and meter | 17.3kg | open price |
Auxiliary Step HQ-N
| Item Code | Wight | List price |
|---|---|---|
| HQ-N | 4.2kg | Open Price |
TRIANGLE 01 (BUILDER) Preceding Handrail -for Wedge Binding Type- :HASTD
Stationary precedence handrail for the HEIWA Builder, approved by Scaffolding and Construction Equipment Association of Japan
Our original stopper feature has ensured a safer work environment and improved the work efficiency.
| Item Code | Weight | List price | Remarks |
|---|---|---|---|
| HASTD-18 | 8.0kg | Open Price | |
| HASTD-15 | 7.3kg | Open Price | Build to order |
| HASTD-12 | 6.3kg | Open Price | |
| HASTD-09 | 5.5kg | Open Price | |
| HASTD-06 | 4.6kg | Open Price | Build to order |
Quick Rail
middle handrail for Preceding handrail(PAP.P
If you additionally need a middle handrail, you
can easily attach it without having to hammer it.
| Weight | Standard |
|---|---|
| 1.85kg | Φ21.7 L=1800mm |
| 2.80kg | Φ31.8 L=1800mm |
MADE TO ORDER
The product is designed specifically for outer pockets
Note: Please do not use this product as a scaffold.
Swivel Wedge
This product is best suited for use at corners.
| Item Code | Weight | List price |
|---|---|---|
| HSW-200 | 0.8kg | Open Price |
Climb Step
| Item Code | Weight | List price |
|---|---|---|
| HSD-1 | 1.1kg | 2,500 JPY |
Entering Prevention Door 6090
Designed for both of H-shaped frames and one-side applications, this product is compatible with a span between 600 and 900 mm.
Usable in four different applications, this product is economical and rational.
| Type | Surface-finishing | Weight | List price |
|---|---|---|---|
| 600mm~900mm Corresponding | hot dip (Coupler:Electroplated) |
15.0kg | Open Price |
Entering Prevention Bar
| Item Code | Type | Weight | List price |
|---|---|---|---|
| – | – | 1.3kg | 3,000 JPY |
Protective shelf (BUILDER)
This product is a simplified Asagao for side scaffolds.
The conventionally assembly method uses pipes, scaffold boards, and others. If you use the Builder Asagao, you have only to wedge it and spread a composite panel. This decreases danger and reduces working hours.
| Weight | List price |
|---|---|
| 9.8kg | Open Price |
HEIWA smart Asagao – protective shelf –
