Temporary materials

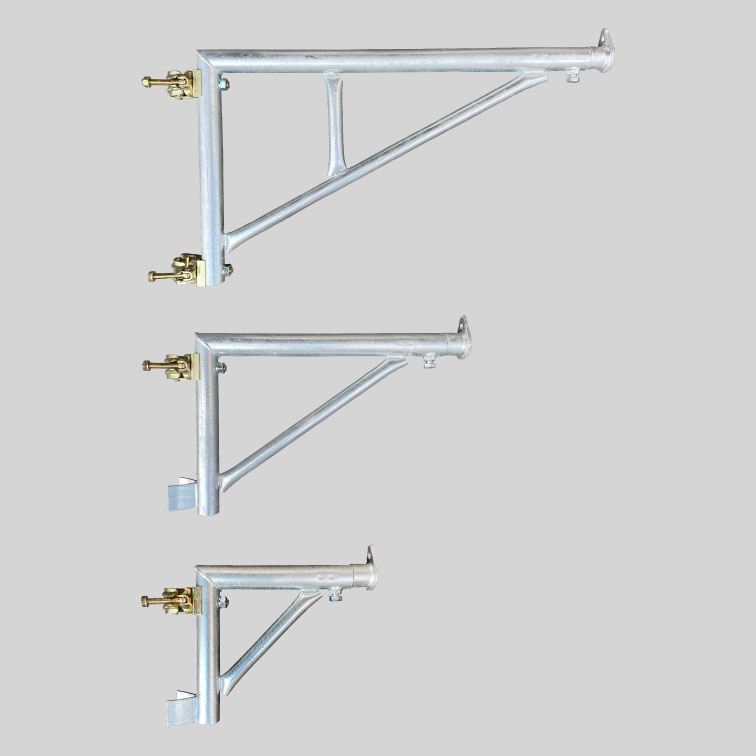

Slide Bracket ：HGB1000/750/500
| Length of bracketing(mm) | Weight(kg) | Clamp | |
|---|---|---|---|
| HGB1000 | 750~1000 | 6.4 | φ48.6/φ42.7 |
| HGB750 | 500~750 | 4.6 | φ48.6/φ42.7 |
| HGB500 | 300~500 | 3.5 | φ48.6/φ42.7 |
＊option＊
・Tip Clamp with bolt nut( BT-1)
・Coupler Set(BT-2)
Tip Clamp with bolt：BT-1
＊Slide Bracket ：HGB1000/750/500 ＊Option
| Type(mm) | φ48.6/φ42.7 |
|---|---|
| Use bolt size(mm) | W1/2×32 |
| Weight | 0.4kg |
| Quantity per case | 50 |
Coupler Set：BT-2
＊Slide Bracket ：HGB1000/750/500 ＊Consumables
This is a replacement part.
| Type(mm) | φ48.6/φ42.7 |
|---|---|
| Weight(kg) | 0.5kg |
| Quantity per case | 40 |

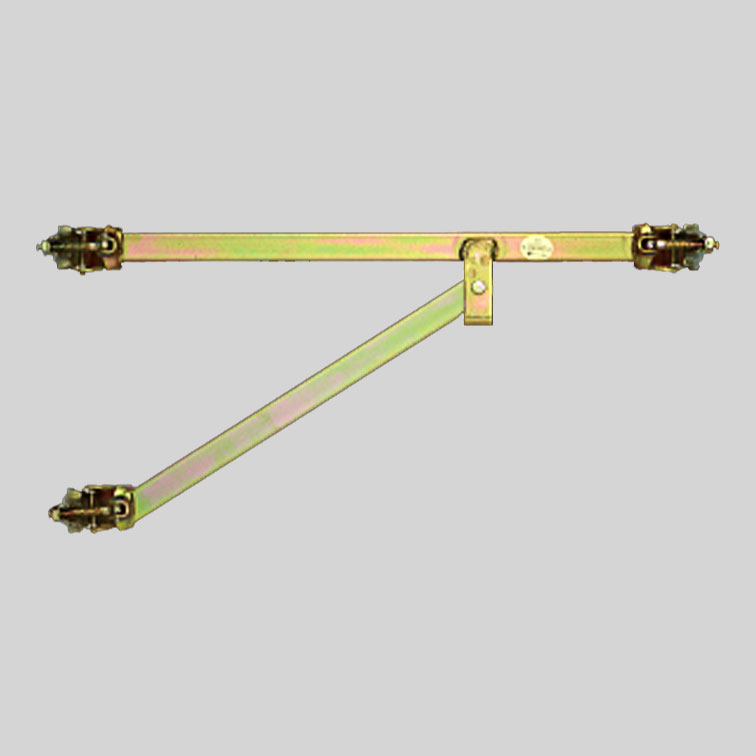

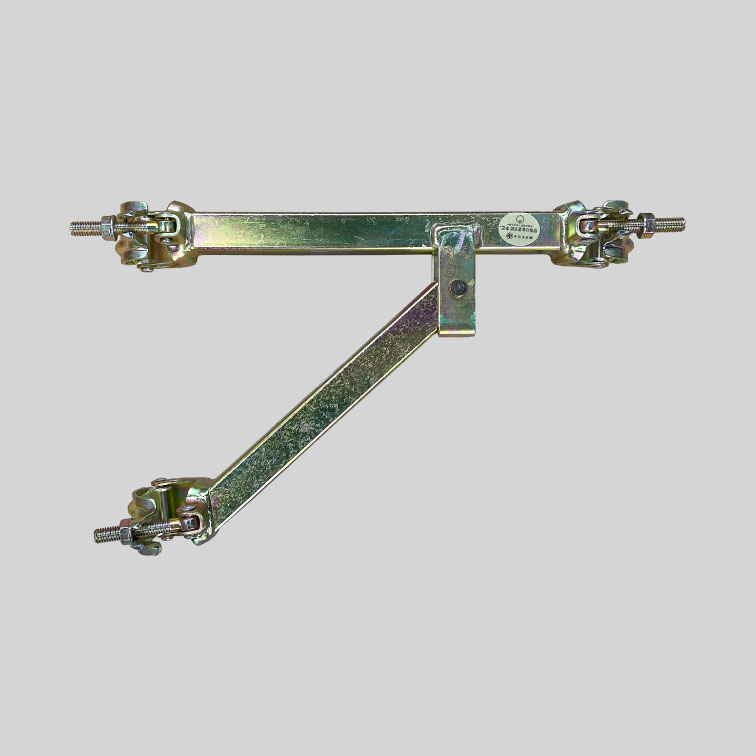

Folding bracket 500/300 :HBT-500/300
| Length (mm) | Weight(kg) | per set | |
|---|---|---|---|
| HBT-500 | 530 | 2.8 | 5 |
| HBT-300 | 300 | 2.2 | 5 |
Net bracket A/B
| Slide range(mm) | Weight(kg) | Clamp | |
|---|---|---|---|
| Type-A | 334～509 | 2.3 | φ48.6/φ42.7 |
| Type-B | 185～265 | 1.9 | φ48.6/φ42.7 |
