Temporary materials

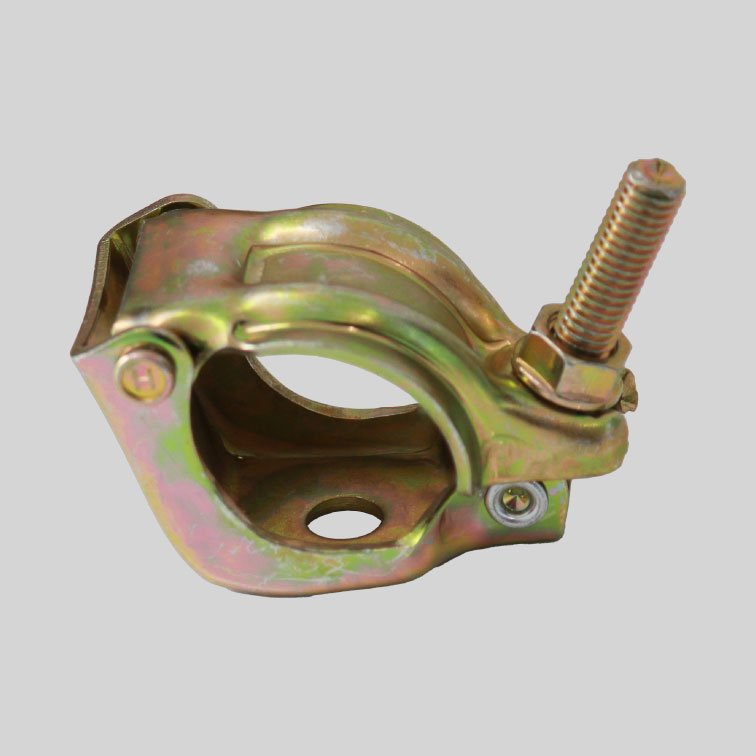

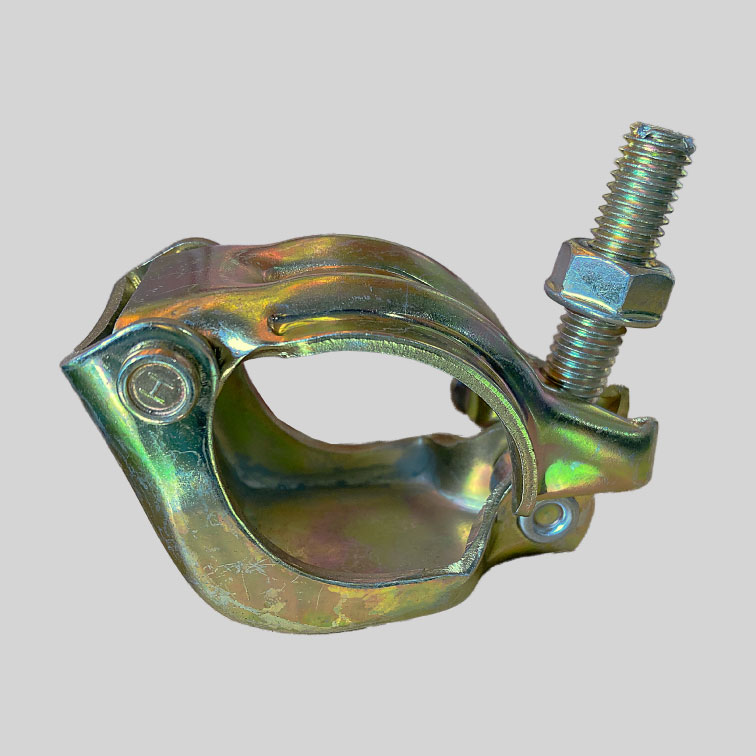

Single Clamp(48.6＆42.7) -with a hole/ without hole-
| with a hole | without hole | |
|---|---|---|
| Type(mm) | φ48.6/φ42.7 | φ48.6/φ42.7 |
| Individual weight(kg) | 0.4 | – |
| Quantity per case | 60 | 60 |
* This clamp can be with or without a hole (φ13ｍｍ ).
* Surface treatment: You can choose from among three choices: electroplating, hot-dip galvanization, and no plating.

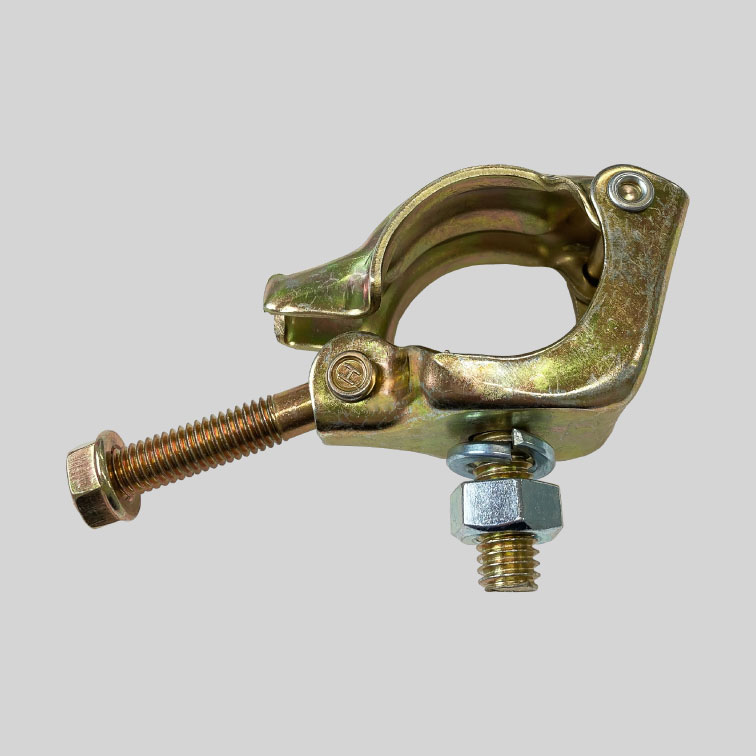

Special Clamp – with a welded bolt –
This product is a clamp with welded bolts of w1/2 x 32 mm. It comes with nuts and spring washers.
| Type(mm) | φ48.6 /φ42.7 |
|---|---|
| Weight(kg) | 0.4kg |
| Quantity per case | 50 |
Sheet Clamp(48.6＆42.7)
| Type(mm) | φ48.6/φ42.7 |
|---|---|
| Weight(kg) | 0.4kg |
| Quantity per case | 50 |

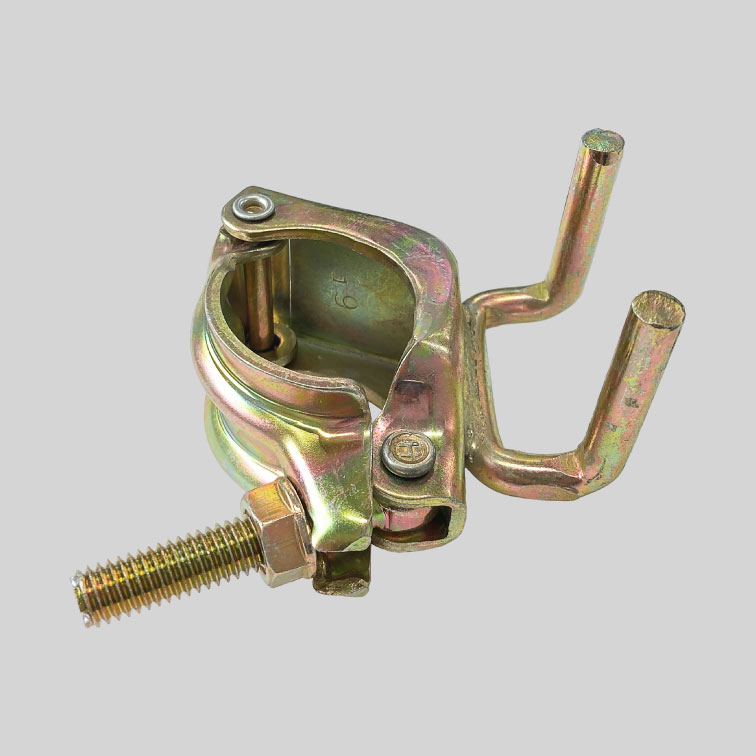

Sheet Clamp (48.6＆42.7) :F-HCR
| Type(mm) | φ48.6/φ42.7 |
|---|---|
| Weight(kg) | 0.5kg |
| Quantity per case | 50 |
＊This is longer than [Sheet Clamp (48.6＆42.7)] hook.

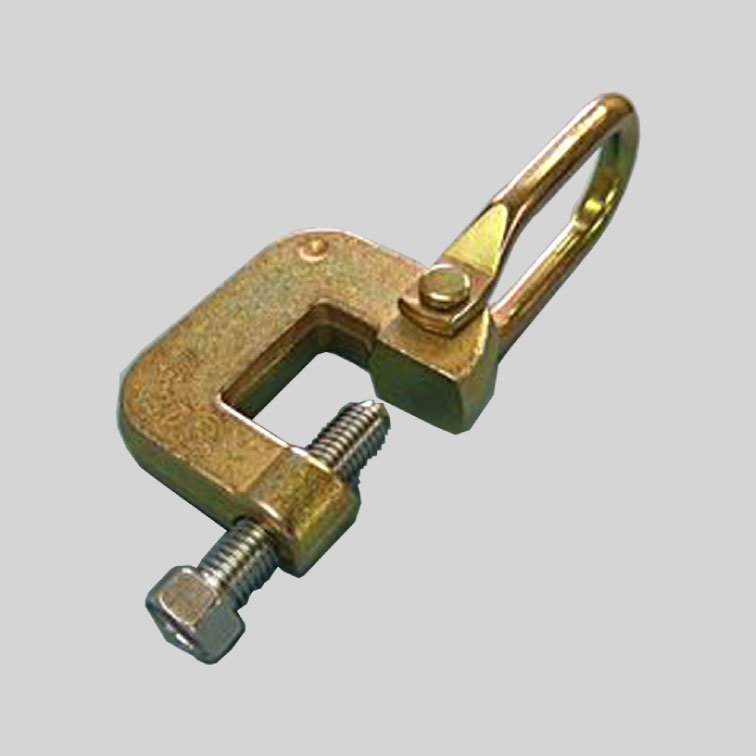

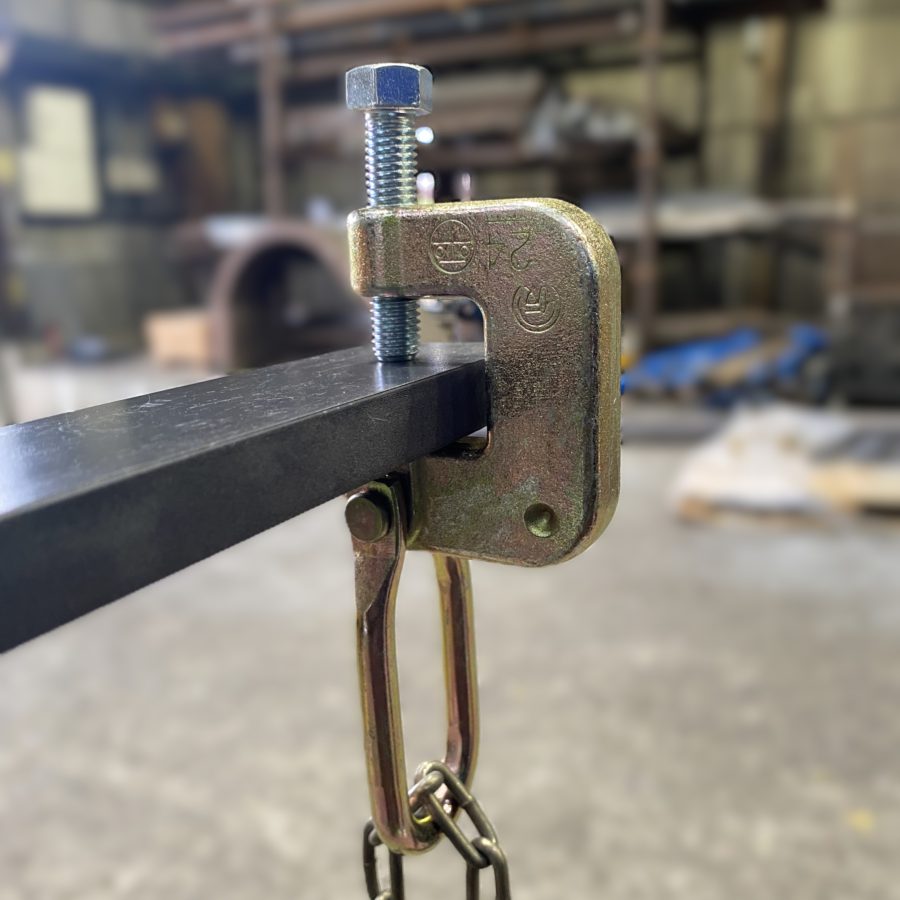

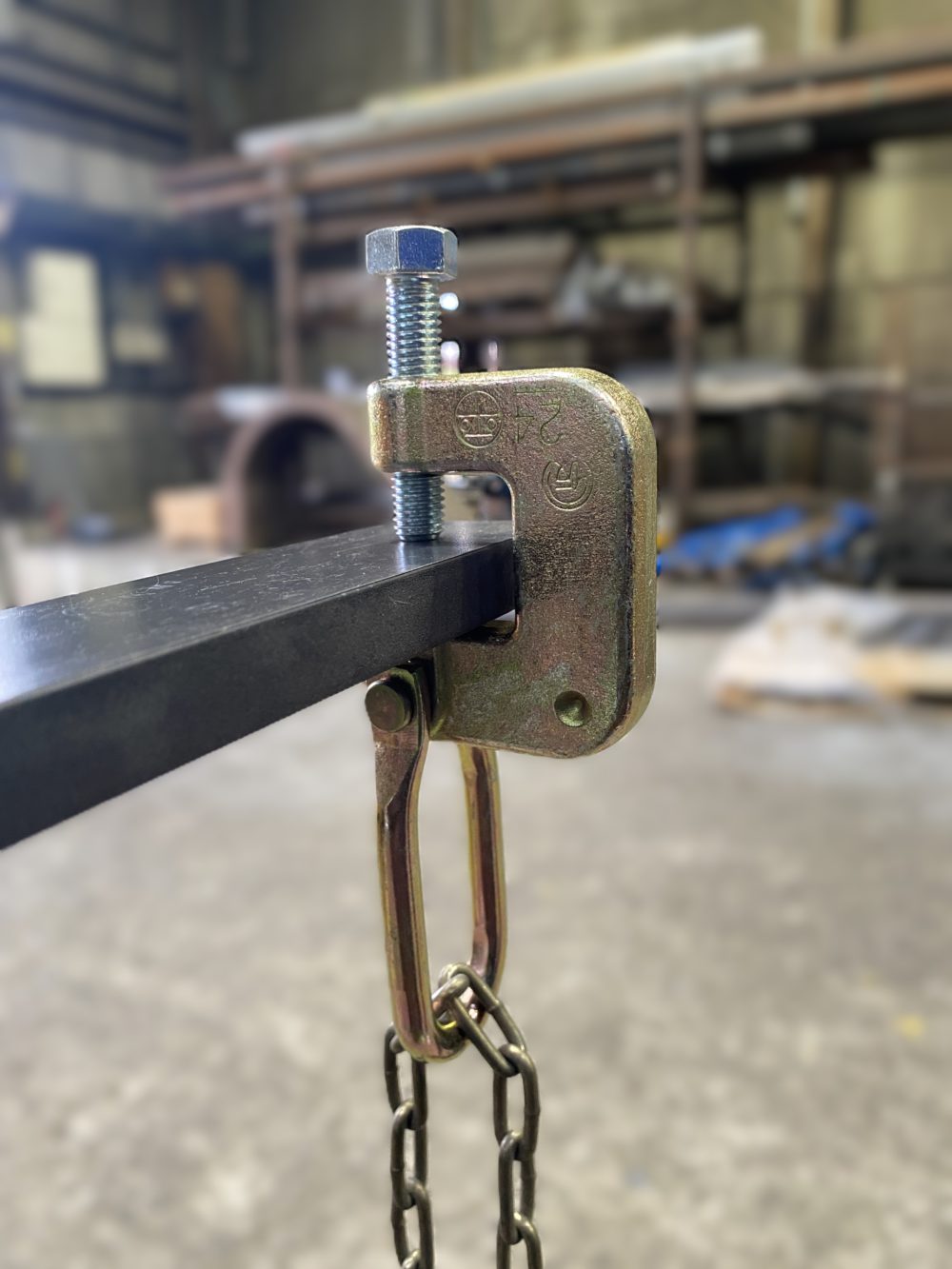

Chain hanger Clamp :HCHA
| Type(mm) | H-beam |
|---|---|
| Coupler margin(mm) | 6~30 |
| Weight(kg) | 0.7 |
| Quantity per case | 20 |

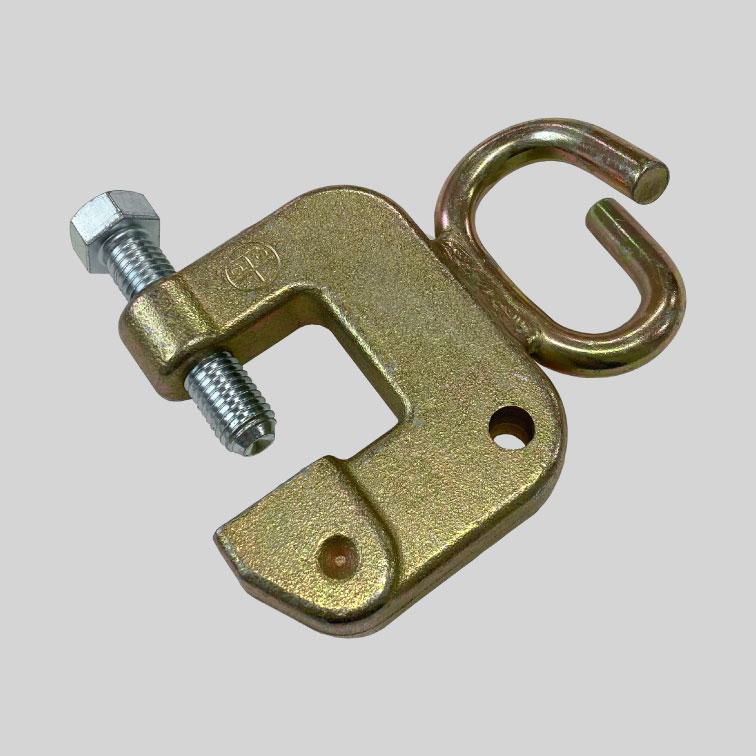

Net holder
| Type(ｍｍ) |
H-beam
|
|---|---|
| Clamp margin(ｍｍ) | 6~30 |
| Weigh(kg) | 0.7kg |
| Quantity per case | 25 |

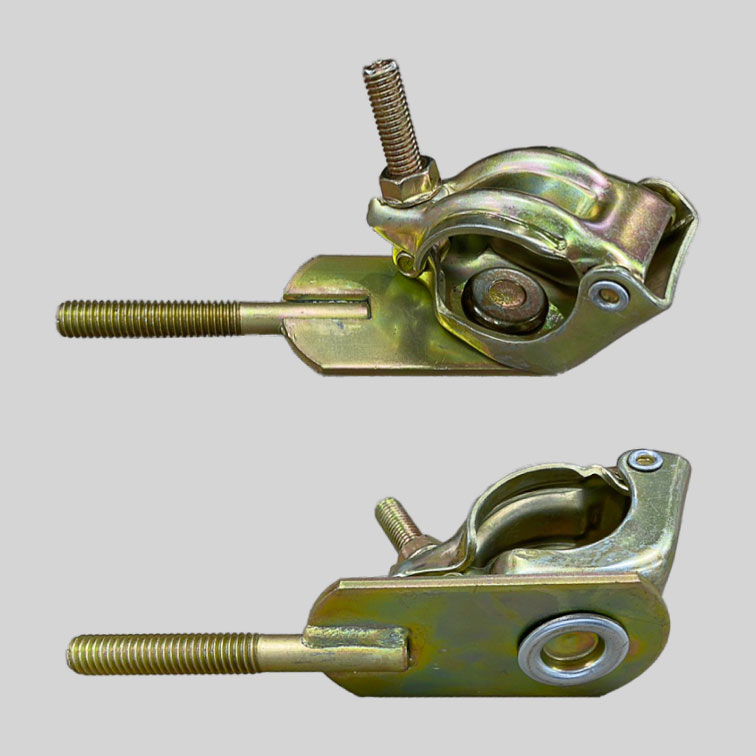

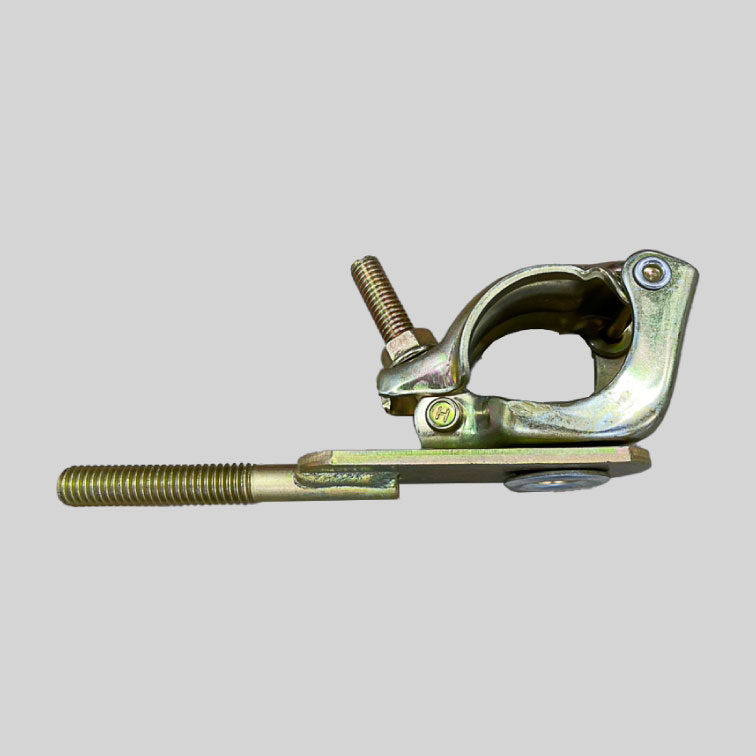

Battledore Clamp(48.6＆42.7)
| Type(mm) | φ48.6/φ42.7 |
|---|---|
| Screw diameter | W1/2 |
| Weight(kg) | 0.6kg |
| Quantity per case | 40 |
W1/2 = Whitworth thread with an external diameter of approximately 12.7 mm.

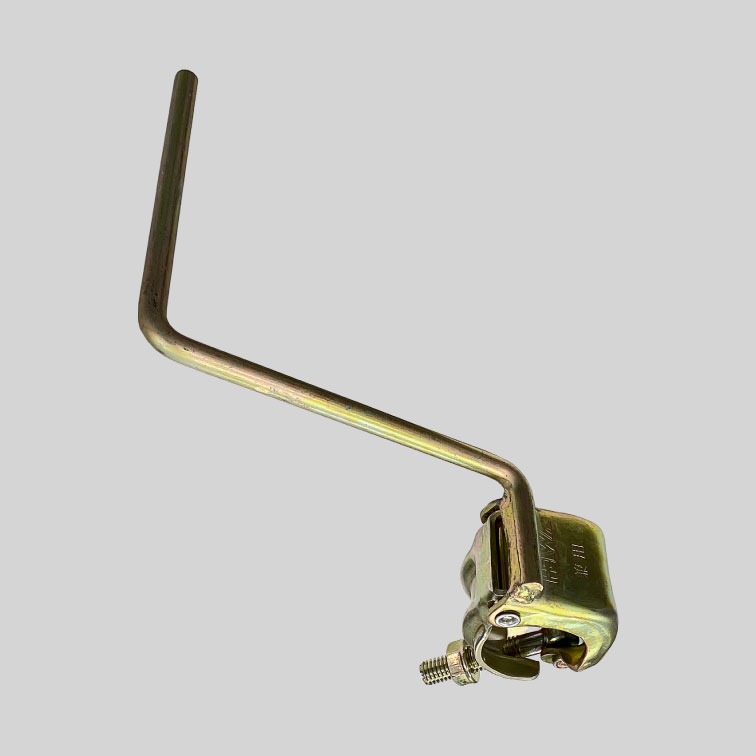

Plinth block Clamp(48.6＆42.7)
This product is best suited for retaining footboards used as baseboards.
| Type(ｍｍ) | φ48.6/φ42.7 |
|---|---|
| Weight(kg) | 0.5kg |
| Quantity per case | 30 |

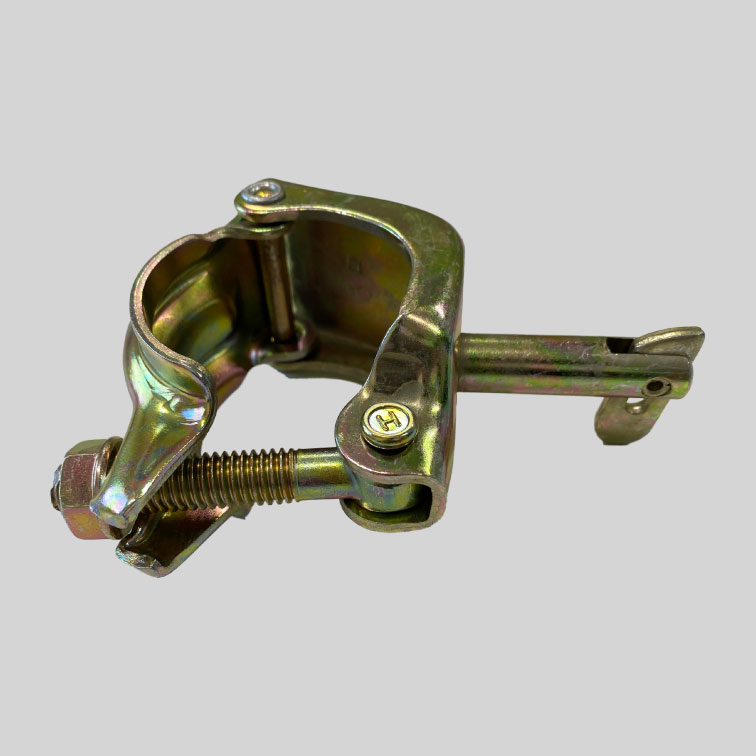

Clamp for Cross Braces (48.6＆42.7)
This product is a single clamp with a welded (hooked-pin type) gravity lock.
| Type(ｍｍ) | φ48.6/φ42.7 |
|---|---|
| Weight(kg) | 0.4kg |
| Quantity per case | 50 |
* We do not provide spring-type clamps.
Rafter fixing Clamp-Vertical/Parallel/Swivel-
This product is regularly used in many areas where snow accumulates. Our rafter retaining clamps are made of domestic materials, providing a sufficient strength.
| Vertical | Parallel | Swivel | |
|---|---|---|---|
| Type(mm) | φ48.6andφ42.7 | φ48.6andφ42.7 | φ48.6andφ42.7 |
| Weight(kg) | 0.4 | 0.4 | 0.4 |
| Quantity per case | 50 | 50 | 50 |
Rafter fixing Clamp (45)-Vertical/Parallel/Swivel-
This product is regularly used in many areas where snow accumulates. Our rafter retaining clamps are made of domestic materials, providing a sufficient strength.
| Vertical | Parallel | Swivel | |
|---|---|---|---|
| Type(mm) | φ48.6andφ42.7 | φ48.6andφ42.7 | φ48.6andφ42.7 |
| Weight(kg) | 0.4 | 0.4 | 0.4 |
| Quantity per case | 50 | 50 | 50 |
The rafter size ：45 mm max
